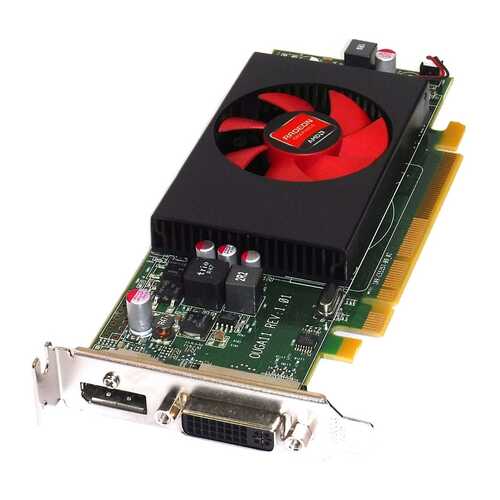

The Radeon R5 240 OEM was a graphics card by AMD, launched on November 1st, 2013. Built on the 28 nm process, and based on the Oland graphics processor, the card supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_1, which can be problematic with newer DirectX 12 titles. The Oland graphics processor is a relatively small chip with a die area of only 77 mm² and 950 million transistors. It features 384 shading units, 24 texture mapping units, and 8 ROPs. AMD has paired 1GB GDDR3 memory with the Radeon R5 240 OEM, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 730 MHz, which can be boosted up to 780 MHz, memory is running at 900 MHz.
Being a single-slot card, the AMD Radeon R5 240 OEM does not require any additional power connector, its power draw is rated at 50 W maximum. Display outputs include: 1x DVI, 1x HDMI 1.4a. Radeon R5 240 OEM is connected to the rest of the system using a PCI-Express 3.0 x8 interface. The card measures 168 mm in length, and features a single-slot cooling solution.

(AMDR5240LP-R)

GPU Memory 1 GB GDDR3
Memory Interface 64-bit
Memory Bandwidth 16 GB/s
Shading Units 384
System Interface PCI Express 3.0 x8
TDP 50 W
Thermal Solution Active
Form Factor Single Slot, Low Profile
Display Connectors DVI, DisplayPort
Graphics APIs DirectX 11.1, OpenGL 4.6, Vulkan 1.2, Shader Model 5.1
Compute APIs OpenCL 1.2
SKU AMDR5240LP-R
Barcode # 608539482153
Brand AMD
Brand AMD
Type Graphics Card
Model R5 240
Chipset Manufacturer AMD
Memory Type GDDR3
Chipset/GPU Model AMD R5 240
Memory Size 1 GB
Shipping Cubic 0.017794000m3
