New, open box, unused item.

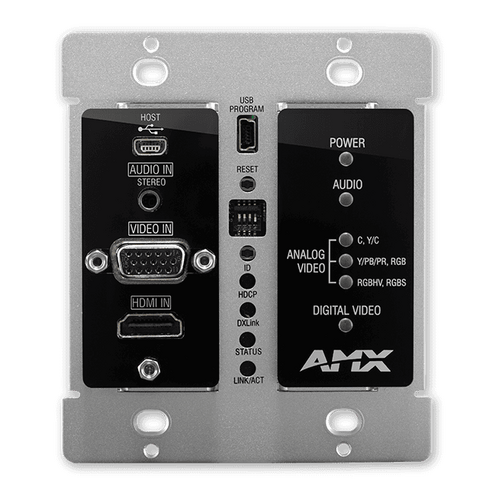

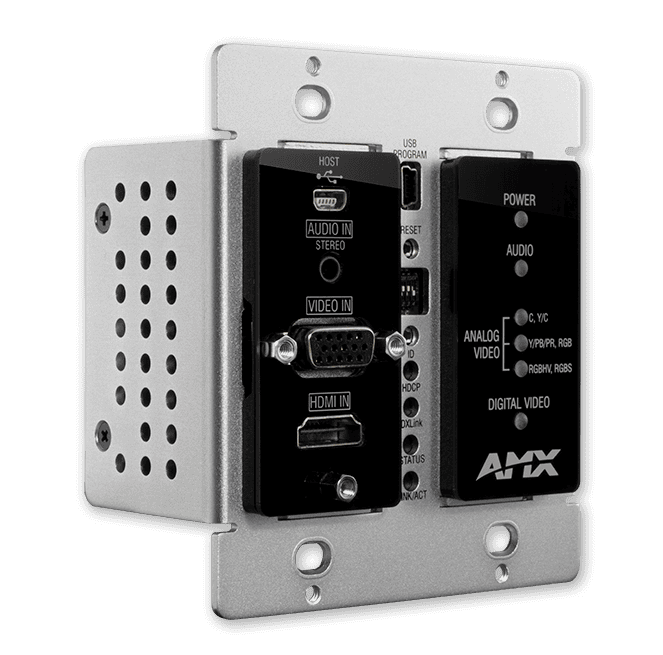

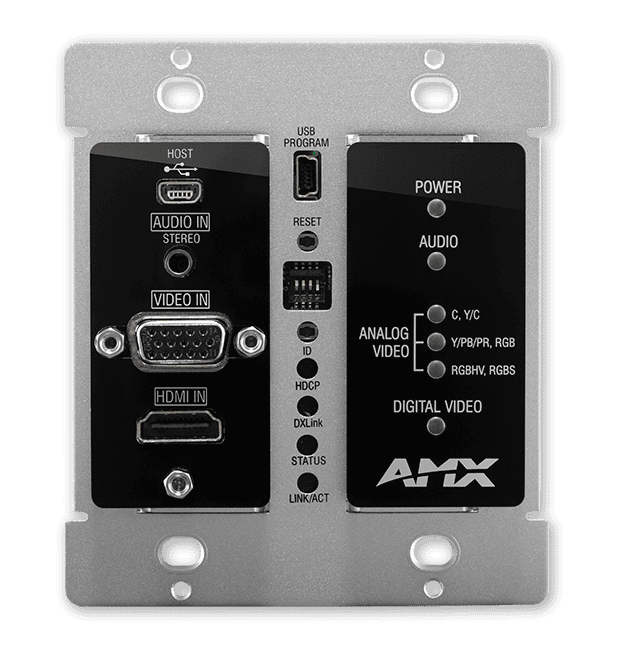

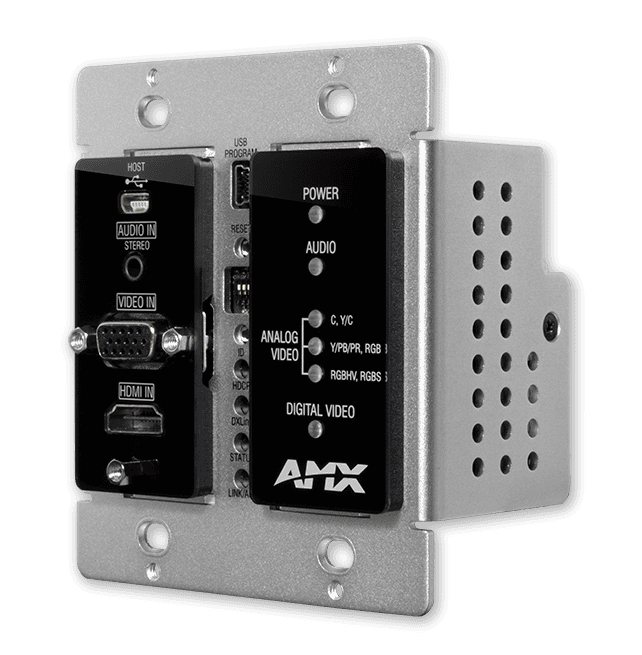

The DXLink Multi-Format Decor Style Wallplate Transmitter sends analog or digital video including HDMI/HDCP, along with embedded audio or supplemental analog audio up to 100 meters to an Enova DGX Digital Media Switcher, compatible Enova DVX All In One Presentation Switcher or directly to a DXLink Receiver. It receives Power over DXLink* from the Enova DGX, Enova DVX (3155HD, 3156HD, or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Dual Power over DXLink Controller over the twisted pair cable and features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

Common Applications

Mount the DXLink Multi-Format Decor Style Wallplate Transmitter in the wall, lectern or popular floor box to connect guest equipment and send audio and video signals across the room, on the other side of the house or in a classroom down the hall. Since it is powered remotely, the wallplate can be installed virtually anywhere.

(AMX-DX-TX-DWP-BL-OB)

Dimensions (HWD) 4 1/16" x 3 1/2" x 2 1/4" (10.31 cm x 8.84 cm x 5.72 cm)
Twisted Pair Cable Type & Length Shielded Cat6, Cat6A and Cat7; up to 328 ft (100 m)
USB (HID) (1) USB Mini A/B Connector (“HOST”); Use in conjunction with an Enova DGX Digital Media Switcher
Front Connectors USB Mini-B Connector; HDMI Input: HDMI Type A Female; Analog Video Input: HD-15; Analog Stereo Input: 3.5mm Mini-Stereo Jack;
Back Connectors DXLink Output: RJ-45
HDMI Compatible Formats: HDMI, HDCP, DVI; Data Rate (Max): 4.95 Gbps / 6.75 Gbps
HDMI Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio Audio Resolution: 16 bit to 24 bit; Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192kHz
HDCP & DDC/EDID HDCP: Supports AMX HDCP InstaGate Pro Technology When used with an AMX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device; DDC/EDID Support: EDID in point-to-point mode is passed up from the sink Device
Analog Video Compatible Formats RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite)
Analog Video Resolution Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF) S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bit
FG Numbers

FG1010-325-BL (Black)
FG1010-325-WH (White)

SKU AMX-DX-TX-DWP-BL-OB
Barcode # 608539041275
Brand AMX
Brand AMX
Type Wall Plate
Model DX-TX-DWP-BL
Shipping Cubic 0.017794000m3
