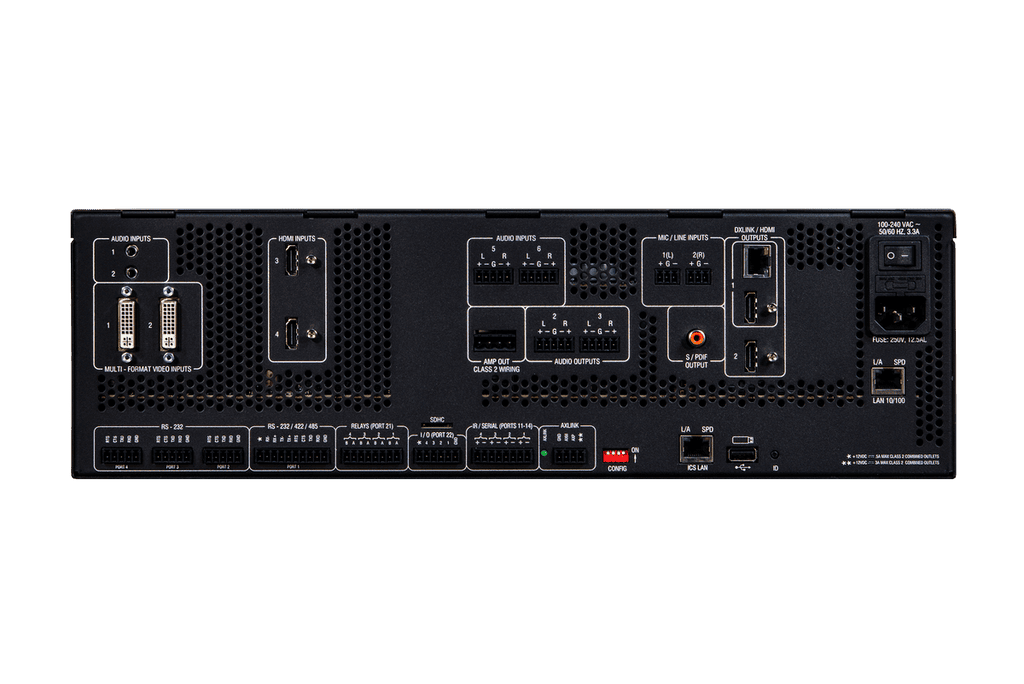

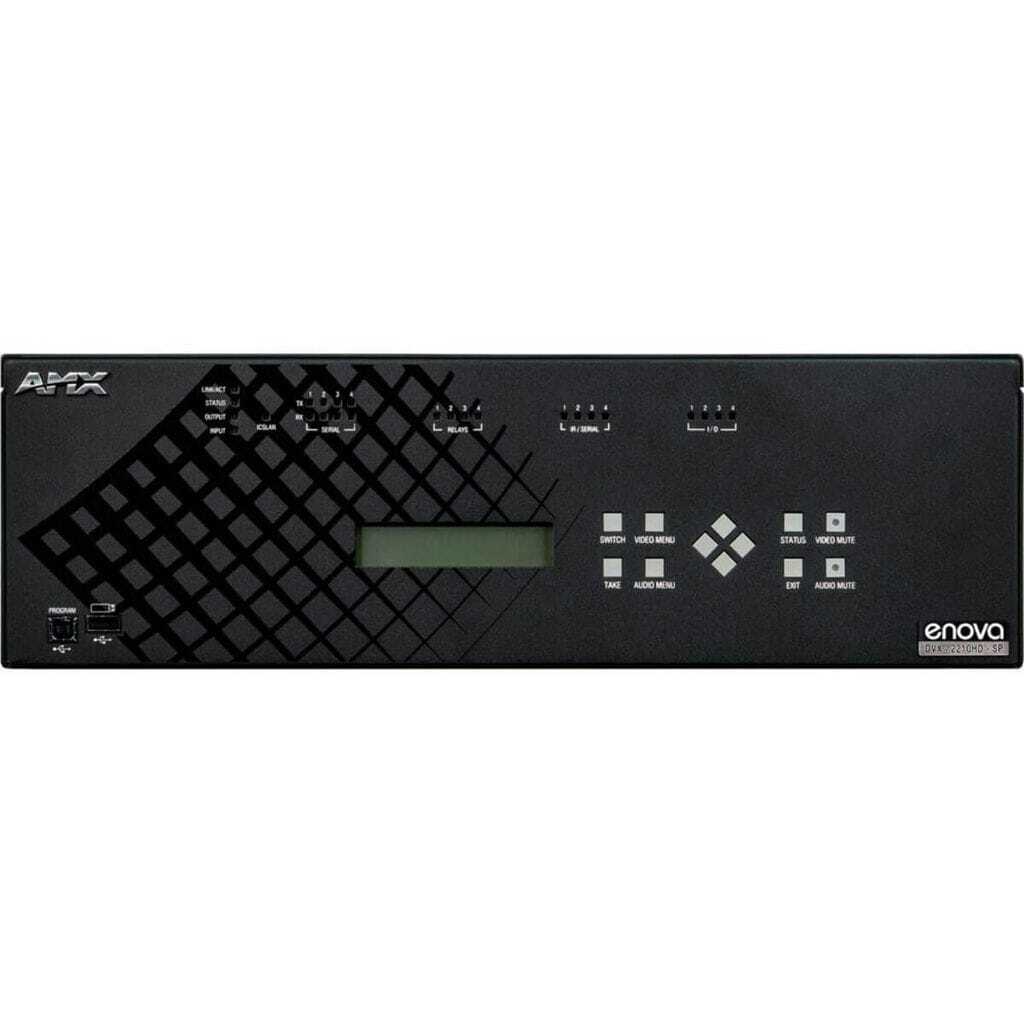

New in box Enova DVX-2210HD-T unit. May differ slightly from images (DVX-2210HD-SP pictured).

The Enova® DVX-2210HD 4x2 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces the need for numerous individual components and eliminates the integration and reliability challenges that accompany them. The compact 3U Presentation Switcher integrates a variety of different functionality, such as a scaler, analog to digital signal converter, twisted pair transmitter and amplifier with built-in professional grade audio processing into a single box. With AMX-exclusive features, the DVX-2210HD is a simple to install, flexible solution, perfectly suited for smaller conference rooms and classrooms.

The DVX-2210HD includes the next generation NetLinx Integrated Controller technology, the NX-Series. This new controller provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features.

The DVX-2210HD includes a long list of features to ensure optimal audio and video quality from virtually any source. The state-of-the-art professional grade audio DSP delivers quality audio throughout a room. The 2210HD's multi-format video inputs support analog and digital signals including HDMI with HDCP sources - all in the same connector. Built-in SmartScale® Technology outputs video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions - making the 2210HD easy to specify, easy to install and easy to use.

The Enova DVX's all-in-one architecture also delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.

COMMON APPLICATIONS

  • The DVX-2210HD is ideal for dramatically simplifying AV control and distribution in small conference rooms and classrooms - especially those on a tight budget.
  • The flexible DVX-2210HD is perfect for any small collaboration space with a mix of analog and digital sources.
  • The DVX-2210HD is perfect for any room or facility with space constraints, especially those that lack space in equipment racks.

(AMX-DVX-2210HD-T)

Video Inputs (2) Multi-Format DVI-I, (2) HDMI. See Data Sheet for Details
Video Outputs (2) HDMI; supports HDMI/HDCP, (1) DXLink; mirrors associated HDMI outputs; supports digital video, audio, Ethernet, and bi-directional control
Video Resolution Support Supports resolutions up to 1920 x 1200 @ 60 Hz. See Operations Reference Guide for details for each signal type.
Audio Inputs (2) female 1/8" stereo mini-phono jacks, (2) 3.5 mm 5-position captive-wire terminals, (2) 3.5 mm 3-pin captive-wire MIC connectors, (2) HDMI connections, (2) DXLink connections. See Data Sheet for details
Audio Outputs - SP (1) Amplified audio output; 4-position captive wire connector, (2) Line level audio outputs, (1) S/PDIF output, (2) HDMI outputs, (1) DXLink output. See Data Sheet for details
Audio Outputs - T (1) Amplified audio output; 2-position captive wire connectors, (2) Line level audio outputs, (1) S/PDIF output, (2) HDMI outputs, (1) DXLink output. See Data Sheet for details
AxLink Port (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
RS-232/422/485 Ports (1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
RS-232 Port (3) 5-position 3.5mm Screw Terminal, NetLinx Ports 2-4, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
IR/Serial (4) 2-position 3.5mm Screw Terminal, 4 IR Transmit / 1-way Serial ports, NetLinx Ports 11-14. See Data Sheet for details
I/O Channels (4) 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
Relays (4) Two 8-position 3.5 mm Screw Terminal, (8) single-pole, single-throw relays, NetLinx Port 21, Channels 1-4. See Data Sheet for details
Dimensions (HWD) 5 3/16" x 17" x 14" (13.2 cm x 43.2 cm x 35.6 cm)
FG Numbers FG1906-07 (2x25W, 8-Ohms)
FG1906-09 (75W, 70/100V) (Discontinued)
SKU AMX-DVX-2210HD-T
Barcode # 608539211562
Brand AMX
Brand AMX
Type Presentation Switcher
Model DVX-2210HD-T
Shipping Cubic 0.017794000m3
