Brand New, Open Box item.

User-perspective network and application performance analytics

With today's reliance on Wi-Fi and the growing use of SaaS and IoT, IT departments are facing new challenges to deliver the best user experience possible.
To provide a consistent level of reliability and performance, the User Experience Insight solution enables IT to proactively simulate real-world user and client experiences. IT can continuously monitor network connectivity and the performance of wireless and Ethernet connections in critical, high-value locations like office spaces, retail, education, healthcare, and similar types of environments.

Customizable test scripts and easy to deploy sensors provide application and network insights for any vendor-agnostic wireless and wired network dealing with the influx of mobile and IoT devices. In addition, this allows IT to get in front of service issues before they occur.

How it works

The Aruba solution includes simple to deploy sensors, cloud-based data processing and an easy to use webbased administrative dashboard that can be accessed from anywhere. This solution is ideal for any organization and IT team tasked with delivering the best possible network experience with their user's connectivity and application performance in mind.

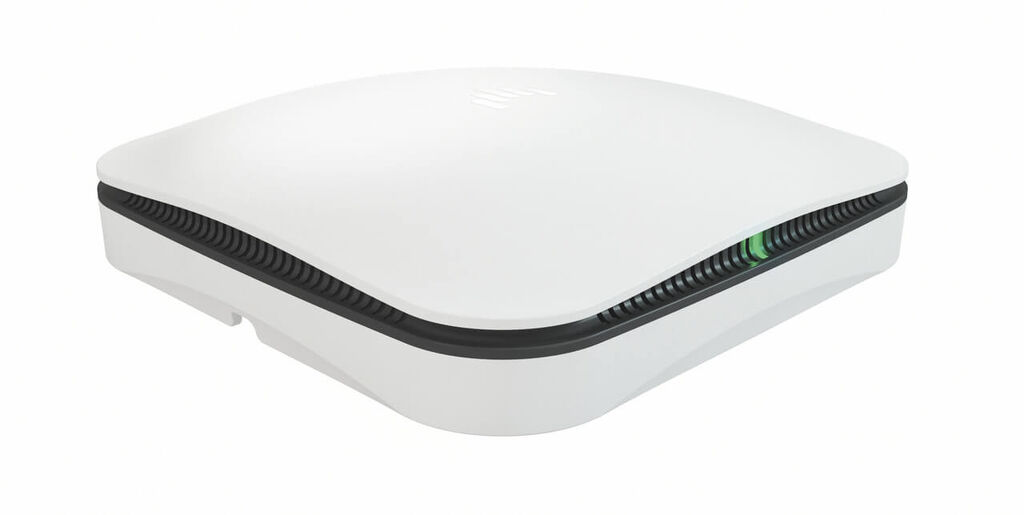

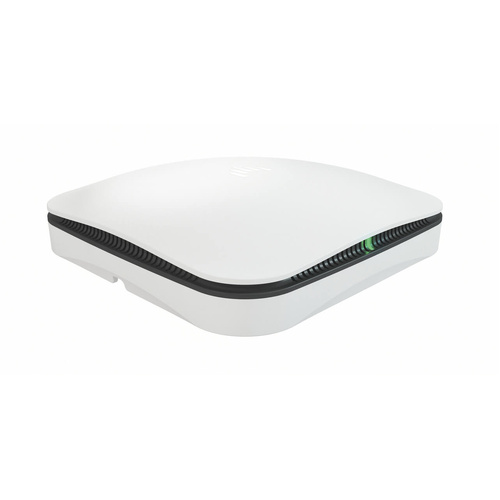

The Purpose-built Sensor

Aruba LTE sensors can be placed within any area where users or IoT devices are located to reduce the time to identify and resolve application responsiveness and user experience issues. The sensor is placed at the same height where user’s devices are placed or held, to run accurate simulated tests over Wi-Fi. Wired connections are also supported.

Tests can be set up for LAN and WLAN connectivity, DHCP, DNS, authentication, captive portal response, cloud and internal applications. Installation of the sensor, even in extremely remote locations is easy due to built-in out-of-band cellular connectivity. This reduces the time and effort normally required to go on-site, diagnose a problem and put a resolution into action.

Configuration and visibility

The cloud-based analytics and insights engine provides a robust and scalable model that allows IT to centrally configure and run tests for today’s emerging SaaS or internal applications. Pre-configured templates or custom defined tests can monitor the most important apps and services. For example, tests can automatically ping a server to confirm responsiveness, or run a script through a headless browser to see how an application is performing before users encounter a problem.

The web-based service assurance dashboard is designed with simplicity and one-glance visibility in mind. It changes how an assurance dashboard should work. A unique, five-column traffic light model easily lets you see when things are working great and when they’re not.

The status of each sensor, SSID, service and application being tested are highlighted under each of the traffic light icons. This provides IT a good understanding of overall user experience, Wi-Fi connectivity and quality, responsiveness of core network services, and the reachability of internal and external services. Smart notifications help keep you informed when you’re on the run.

(Q9X67A-OB)

Sensor operating mode

  • Emulates a single client for wireless and wired testing
  • Supports testing of multiple SSIDs

Electronic security

  • SSL encryption

Supported interfaces

  • IEEE 802.11 n/ac dual-band Wi-Fi (2.4 & 5GHz)
  • Gigabit Ethernet 10/100/1000
  • 3G/LTE connection for onboarding with fully managed SIM and service

Power

  • Power over Ethernet (PoE) – 802.3af
  • AC adapter
  • Power failover – array of supercapacitors for short-term connectivity

Mounting

  • Wall and ceiling mounting bracket with screw-in option or adhesive backing for quick install (no-residue 3M Command Strips)
  • Security fins to prevent the removal of sensor from mounting bracket
    NOTE: Recommend mounting near users, on a wall or pillar ±4-5 feet (±1.5m) off the ground

Mechanical

  • Dimensions/weight (sensor, excluding mounting accessories):
    • 152 mm x 152 mm x 40 mm (W x D x H), 6 in x 6 in x 1.6 in
    • 318 grams, 11.2 ounces

Environmental

  • Operating:
    • Temperature: +14° F to +113° F (-10° C to +45° C)
    • Humidity: 5% to 93% non-condensing
  • Storage and transportation:
    • Temperature: -40° F to +158° F (-40° C to +70° C)

Reliability

  • MTBF: 640khrs (73yrs) at +77° F (+25° C) operating temperature

Regulatory

  • FCC ID: PPD-AR5B22
  • FCC ID: QISMU609
    NOTE: For more country-specific regulatory information and approvals, please see your Aruba representative.
SKU Q9X67A-OB
Barcode # 190017303888
Brand Aruba
Brand Aruba
Type Wireless Access Point
Model Q9X67A
Shipping Cubic 0.017794000m3
