Includes ASUS X99-A II Motherboard, Intel Xeon E5-1603v3 CPU.

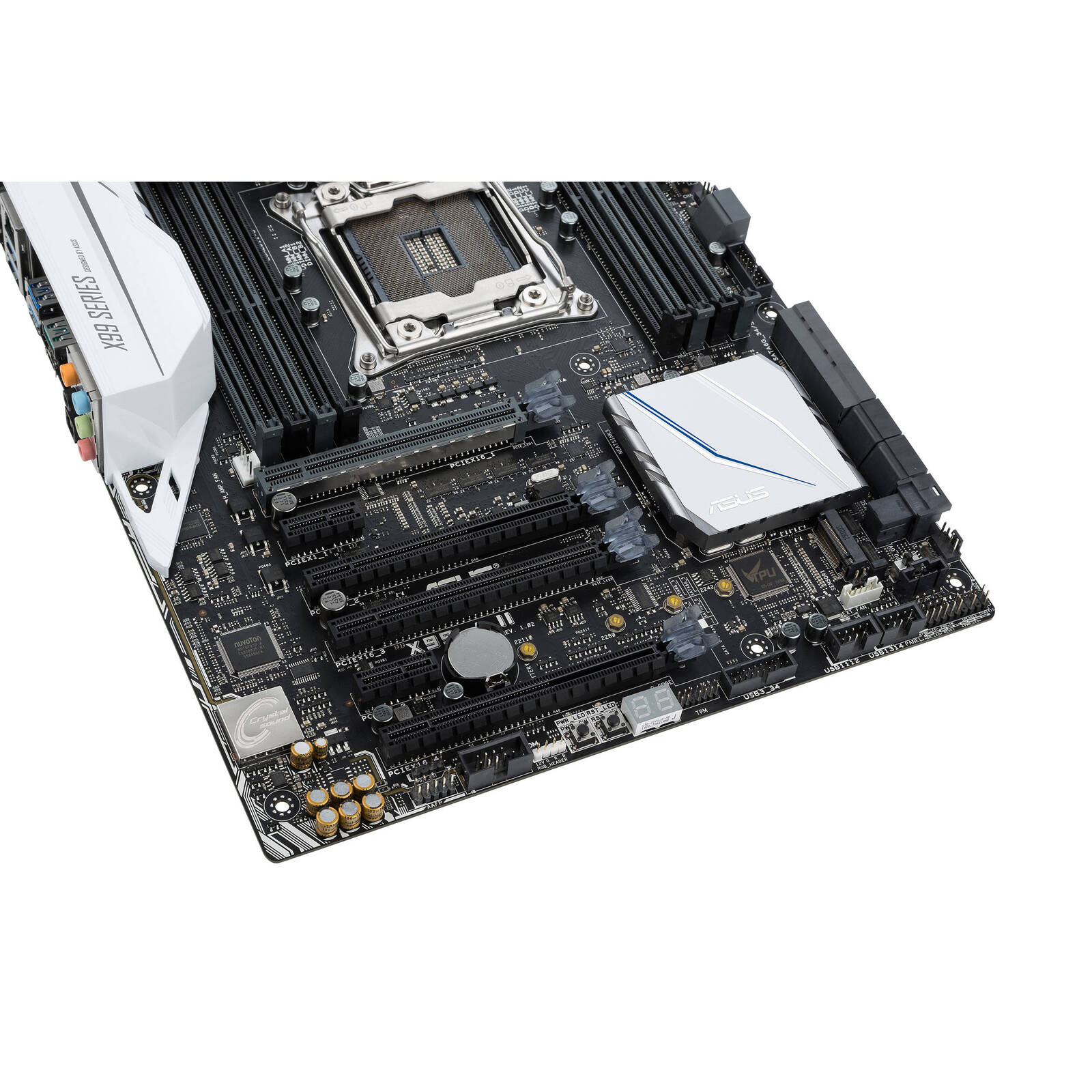

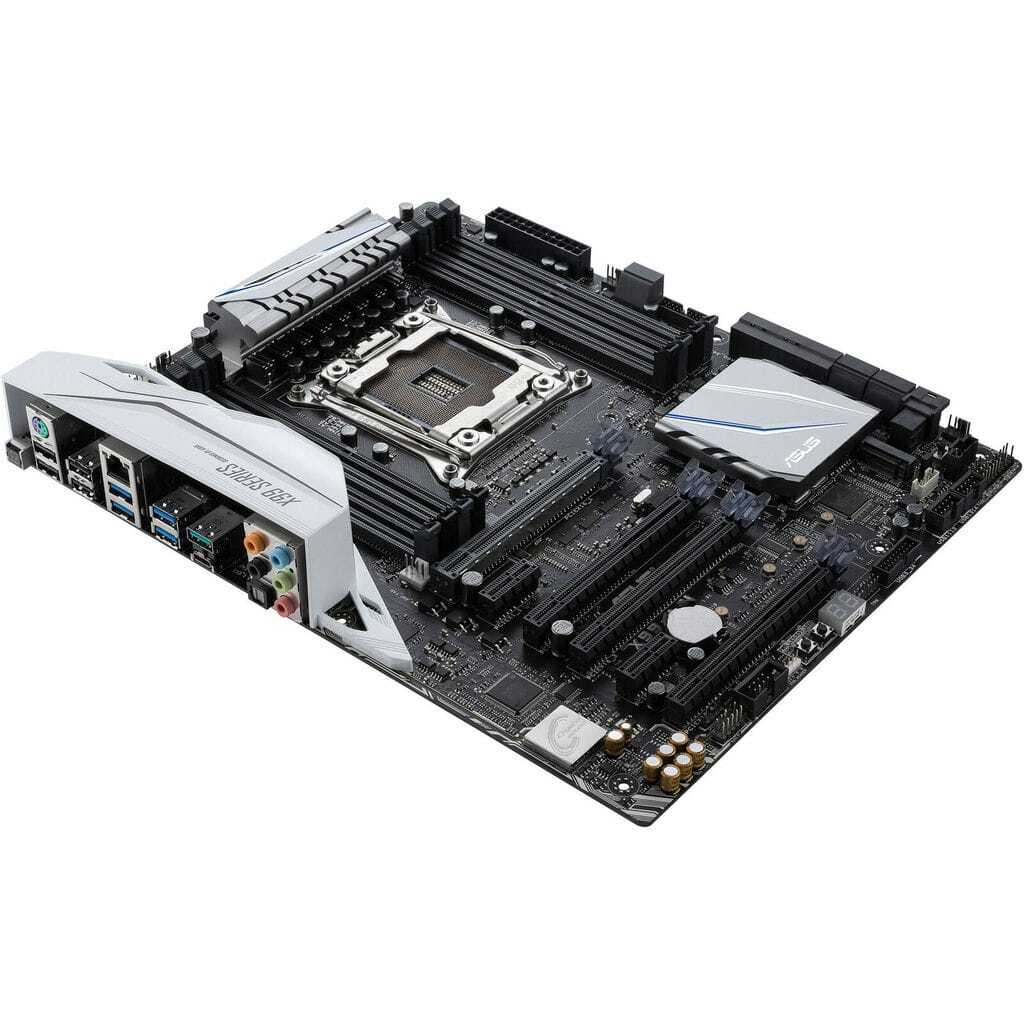

Based on Intel's X99 chipset and retrofitted with technologies to help maximize to potential of Intel's Core i7 X-Series processors for the LGA 2011-v3 socket, the X99-A II LGA 2011-v3 ATX Motherboard from ASUS has been created for gaming. It will fit into cases that support the ATX form factor.

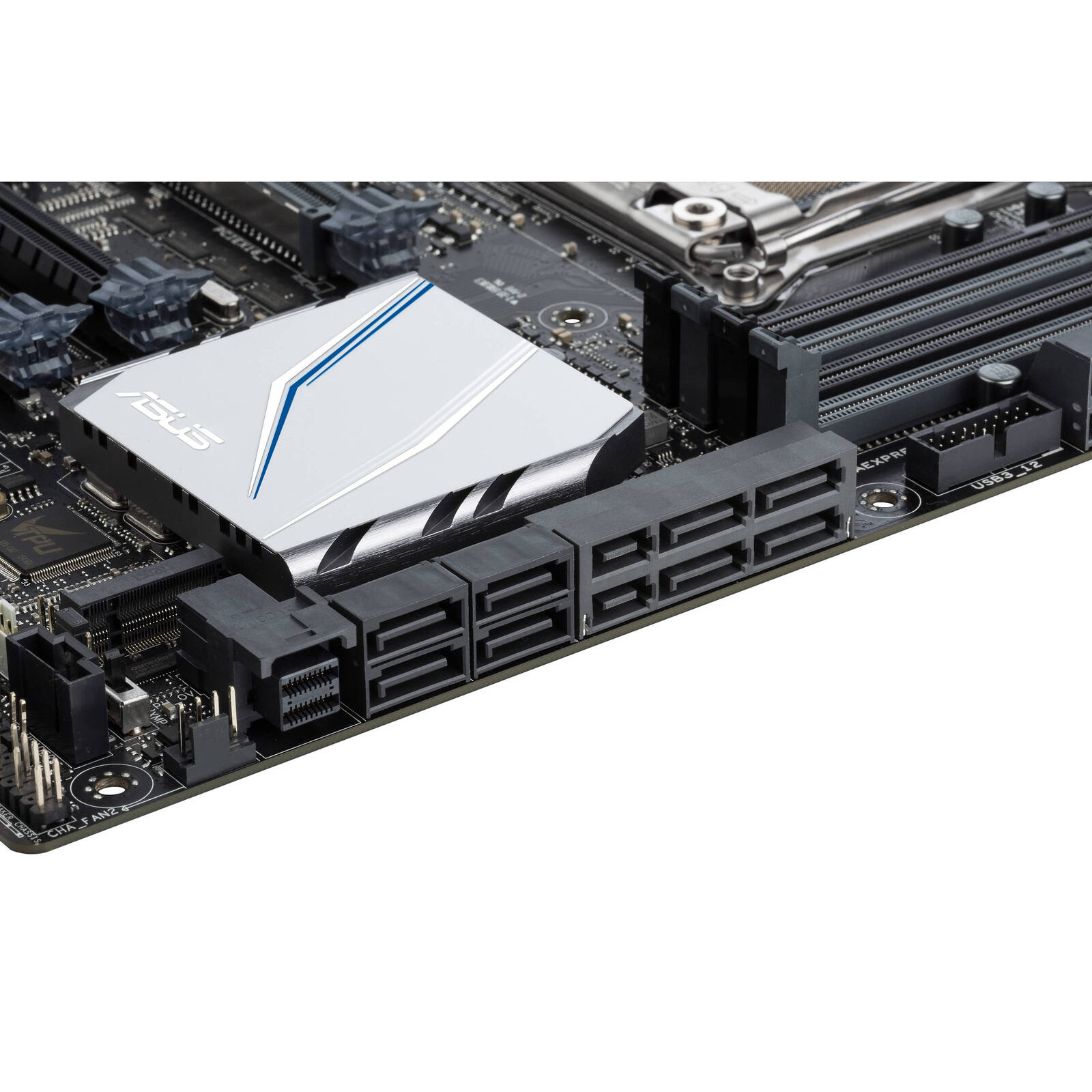

The X99-A II has eight DIMM slots that can support up to 128GB of DDR4 RAM, or 16GB per slot, with a maximum overclocked frequency of 3333 MHz. It also supports a total of 8 x SATA III 6 Gb/s ports, 1 x SATA Express port, 1 x M.2 Socket 3, and will also support 1 x U.2 port. Regardless of whether this motherboard is equipped with a 28 or a 40-lane CPU, there is support for 3 x PCIe 3.0/2.0 x16 slots, 1 x PCIe 2.0 x16 slot, and 2 x PCIe 2.0 x1 slots. USB connectivity is achieved using 1 x USB 3.1 Type-C port and 1 x USB 3.1 Type-A port at speeds up to 10 Gb/s, as well as 8 x USB 3.0 ports, with speeds up to 5 Gb/s. When equipped with a ThunderboltEX 3 add-on card, this motherboard will support bi-directional transfer speeds up to 40 Gb/s via its USB Type-C port, as well as the daisy-chaining of up to six devices, bandwidth for 4K UHD displays running at 60 Hz, and USB Power Delivery for high-power charging of up to 36W.

High quality audio is delivered via Crystal Sound 3 and network connectivity is achieved using the Intel I218-V Gigabit LAN port. Three-way SLI or CrossFire for multi-GPU use is also supported. The ASUS X99-A II LGA 2011-v3 ATX Motherboard is protected by a limited 3-year warranty.



(AsusX99-A-II-R)

ASUS X99-A II

  • Chipset Intel X99
  • Form factor ATX
  • CPU support Intel LGA2011-v3 (Broadwell-E, Haswell-E, Xeon)
  • Memory support Quad-channel, 4 slots, max 128GB
  • Sound 8-channel Realtek ALC1150
  • Networking Intel I218V
  • PCI-E graphics configurations x16, x16/x16, x8/x16/x8

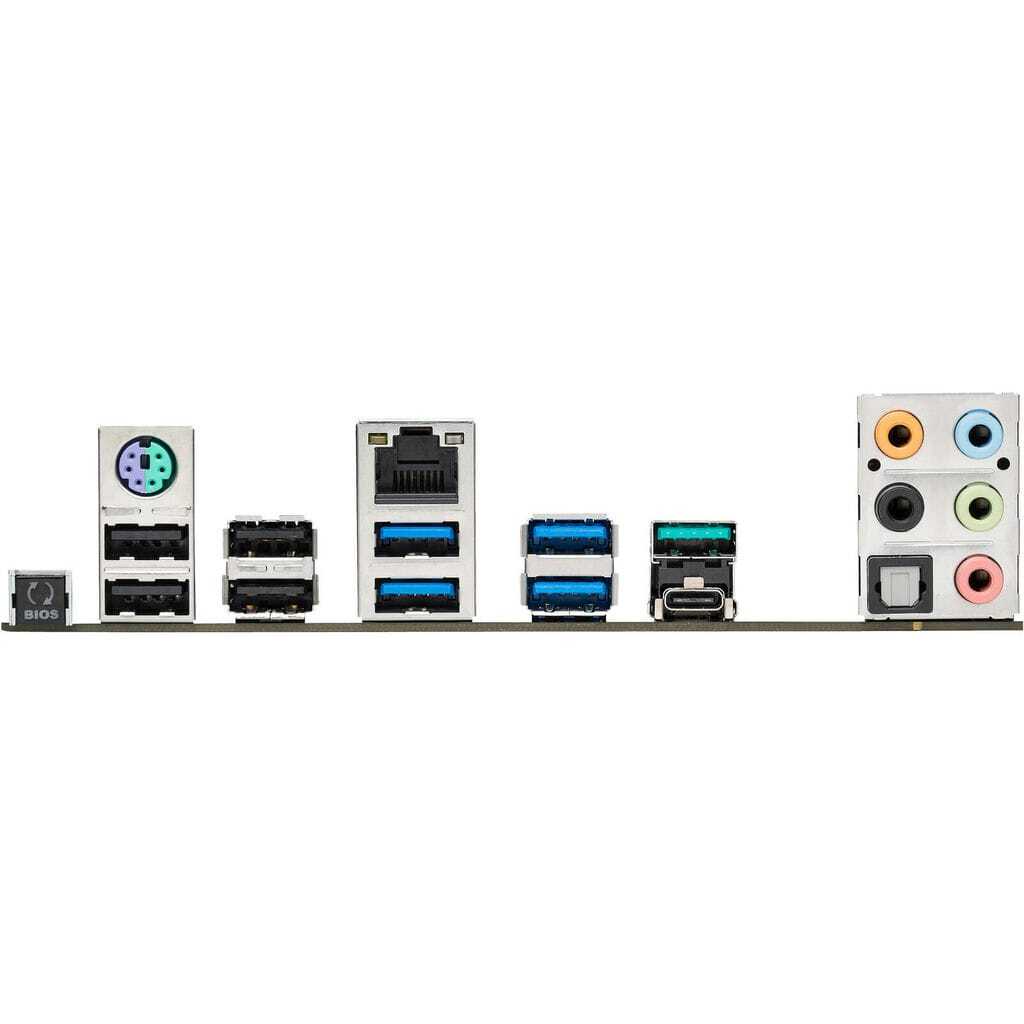

  • Ports 1 x M.2 PCI-E 3.0 x4, 1 x U.2 PCI-E 3.0 x4, 1 x SATA Express, 10 x SATA 6Gbps, 5 x Intel USB 3.0 (4 via headers), 8 x Intel USB 2.0 (4 x via header), 1 x ASMedia USB 3.1 Type-A, 1 x ASMedia USB 3.1 Type-C, 3 x ASMedia USB 3.0, 1 x LAN, audio out, line in, mic, Optical S/PDIF out
  • Dimensions (mm) 305 x 244
  • Extras LED POST code display, power and reset buttons, RGB lighting plus 80cm RGB 4-pin extension cable.

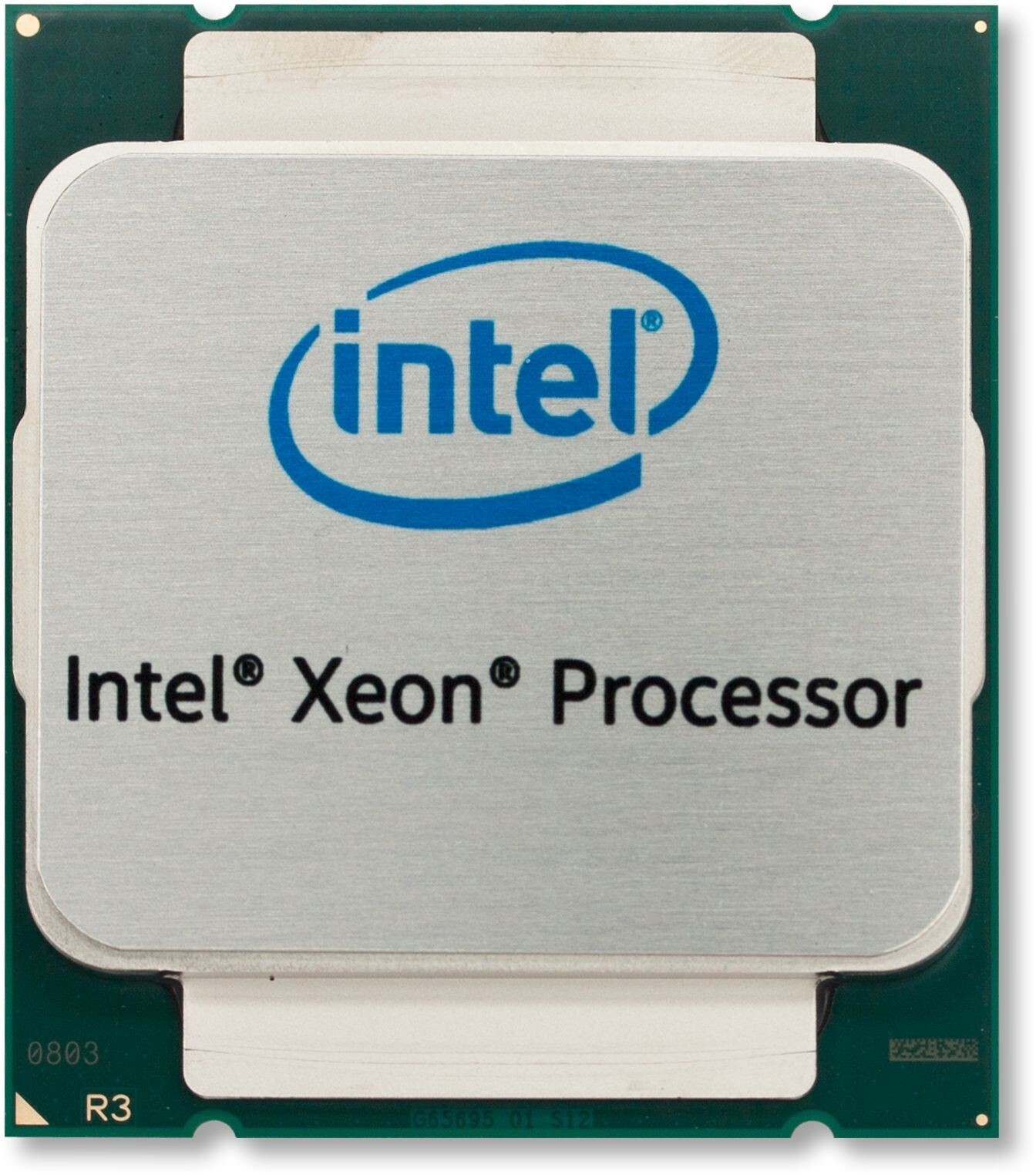

Intel Xeon E5-1603v3

  • Number of Cores: 4
  • cessor Number: E5-1603V3
  • Compatible cessor Socket: FCLGA2011-3
  • Clock Speed: 2.80 GHz
  • Thermal Design Power: 140 W
  • cessor Qty: 1
  • Number of Threads: 4 threads
  • Generation: Haswell
  • Installed Qty: 1
  • Architecture Features: Intel v Technology
  • Cache: 10 MB Intel® Smart Cache
  • Manufacturer: Intel
  • Manufacturing cess: 14 nm
  • Features: Intel v Technology, Intel AVX2, Intel Virtualization Technology (VT-x, VT-d)
SKU AsusX99-A-II-R
Barcode # 608539095780
Brand Asus
Processor Model Xeon E5-1603V3
Brand Asus
Form Factor ATX
Model X99-A II
Socket Type LGA 2011-3
Shipping Cubic 0.017794000m3
