Includes SX10 Quick Set system, compatible 12V power adapter. Does NOT include Remote.

Video-Enable Your Small Collaboration Spaces

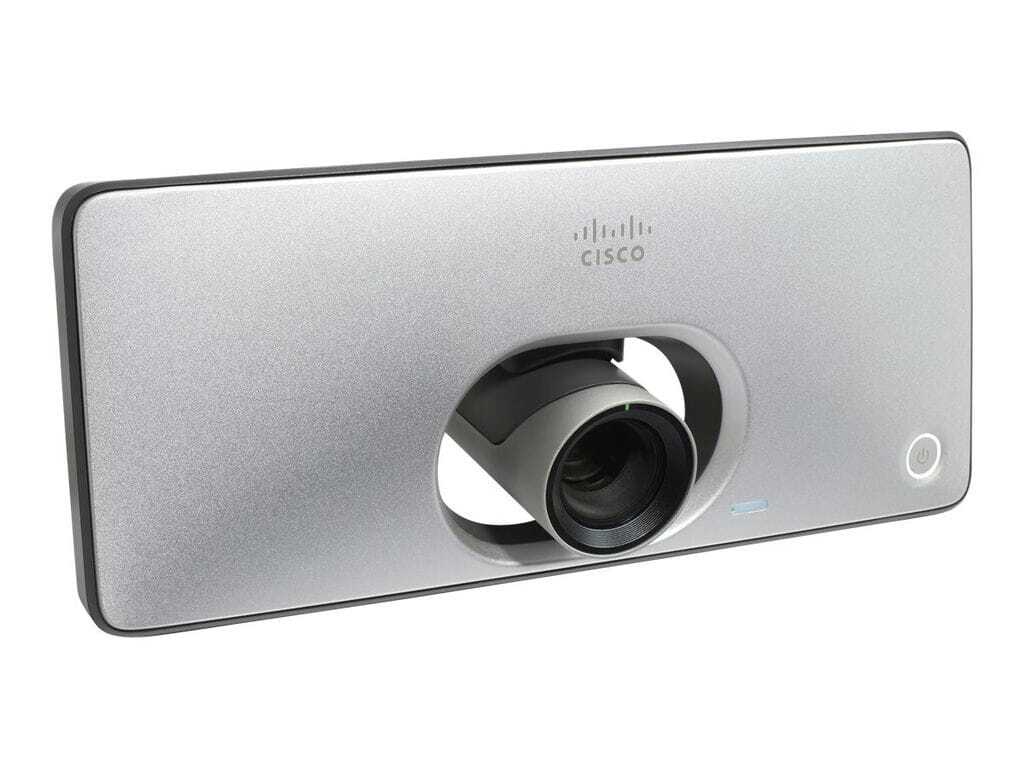

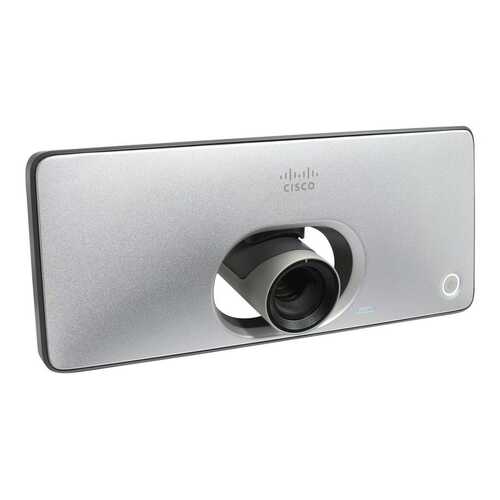

The Cisco SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with video conferencing. With the SX10, you can also extend video conferencing pervasively throughout your enterprise. The SX10 supports cloud registration to Cisco Webex for even faster and more cost-effective deployment.

This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while an industry-leadership wide-angle field of view provides the best overview even in small spaces. Support for Cisco Intelligent Proximity allows you to use your iOS and Android devices to wirelessly control the SX10 as well as receive shared content for richer collaboration. Wireless content sharing is also possible from your laptop or PC.

Features
The primary features of the Cisco SX10 Quick Set follow:

  • Optimal definition up to 1080p30 with content sharing at 1080p5
  • Wide-angle 83° horizontal FOV with 5x zoom
  • Supports Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from laptops (Macs and PCs)
  • Wireless control of the system is also enabled with Intelligent Proximity
  • Easily control room peripherals such as lights, room dividers, curtains, directly from the Cisco Touch 10 control unit (optional) through customizable API (requires external third-party control system processor)
  • Participate in white boarding sessions from Cisco Webex Teams app; receive notification of shared white board content on the Touch 10 (supported on cloud-registered devices)
  • Simplified meeting-join experience with One Button to Push (OBTP) for scheduled devices in Cisco Webex meetings, whether registered on-prem or to the cloud
  • Ready-to-use unit with Power over Ethernet (PoE)
  • Integrated microphone
  • Energy efficient with low consumption (EU Class B)
  • Registers with Cisco ® Unified Communications Manager (UCM) and Cisco TelePresence Video Communication Server (VCS)

(CiscoTTC7-22-B)

Software compatibility

  • Cisco TelePresence Software Version TC 7.1 or later
  • Cisco Collaboration Endpoint Software Version 8.0 or later

Integrated HD camera

  • 5x zoom (2.65 optical and digital zoom)
  • +5°/-25° tilt, +/-30° pan
  • 51.5° vertical field of view
  • 83° horizontal field of view
  • F-value from 2.1
  • 1920 x 1080 pixels progressive @ 30 fps
  • Automatic or manual focus, brightness, and white balance
  • Far-end camera control
  • Automatic flipping of picture when upside down

User interface

  • TRC6 remote control and on-screen Graphical User Interface
  • Optional Cisco Touch 10 control unit

Language support

English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish; depends on software version

System management

  • Total management using embedded Telnet, SSH, XML, and SOAP
  • Remote software upload using web server, secure copy (SCP), HTTP, and HTTPS
  • Remote control and on-screen menu system

Directory services

  • Support for local directories (My Contacts)
  • Corporate directory (through Cisco UCM and Cisco TelePresence Management Suite [TMS])
  • Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
  • Call History with received, placed, and missed calls with date and time

Power

  • PoE enabled
  • Auto-sensing power supply
  • 100 - 240 VAC, 50/60 Hz
  • Maximum 12 watts in normal operation

Operating temperature and humidity

  • 0° to 40°C (32° to 95°F) at Relative Humidity 10% - 90% (noncondensing)

Storage and transport temperature

  • -20° to 60°C (60° to 140°F) at Relative Humidity 10% - 90% (noncondensing)

SX10 codec dimensions

  • Width: 10.8 inches (27.5 cm)
  • Height: 4.6 inches (11.7 cm)
  • Depth: 3.6 inches (9.1 cm) (with max tilt downward on camera)
  • Weight: 2.0 pounds (0.9 kg)

Approvals and compliance

  • Directive 2006/95/EC (Low-Voltage Directive) - Standard IEC/EN 60950-1
  • Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class B - Standard EN 55024 - Standard EN 61000-3-2/-3-3
  • Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
  • Complies with FCC CFR 47 Part 15 Class A



SKU CiscoTTC7-22-B
Barcode # 659359745478
Brand Cisco
Brand Cisco
Type Video Conferencing
Model TTC7-22
Shipping Cubic 0.017794000m3
