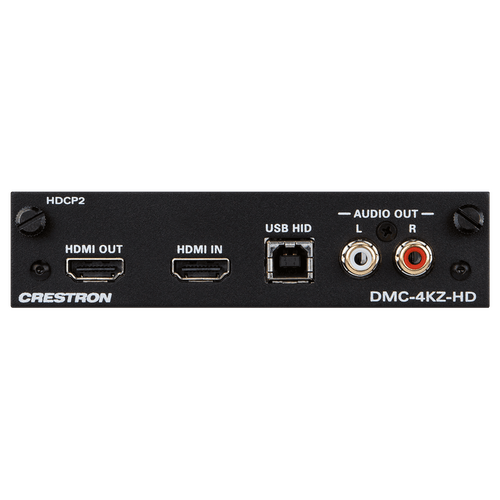

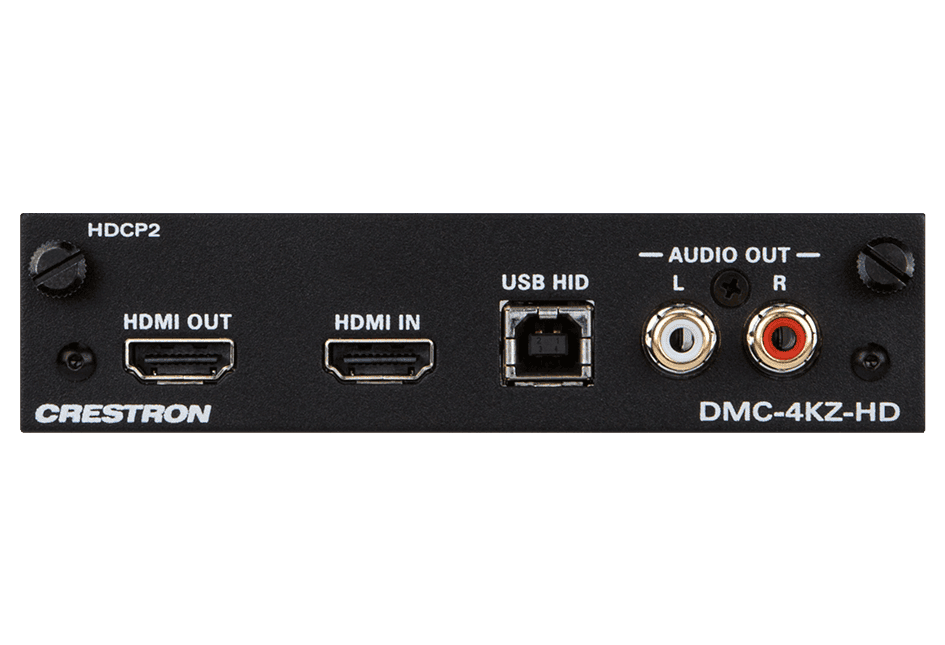

The DMC-4KZ-HD is an input card designed for use with any card-based Crestron® DigitalMedia™ Switcher. It provides one HDMI® input, with complementary HDMI pass-through and analog audio outputs. A USB HID port is also provided. The HDMI input handles Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP 2.2, HDR10, Deep Color, 3D, and high-bitrate 7.1 audio. The HDMI input can also handle DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.^[1,2]

Key Features

Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
Provides a single 4K HDMI® input^[2]
Handles UHD and 4K video resolutions up to 4K60 4:4:4^[2]
Handles HDR (High Dynamic Range) video (HDR10)^[2]
Handles 3D video and Deep Color
Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
HDCP 2.2 compliant
Includes an HDMI output for pass-through of the input signal^[2]
Includes a stereo analog line-level audio output with volume control^[3]
Allows de-embedding of stereo 2-channel audio signals
Enables device control via CEC
Enables USB HID signal extension for a local computer
Compatible with Crestron USB over Ethernet Extenders^[4]
Occupies a single DM® switcher input card slot
Provides an HDMI problem solving solution using the optional DMCI card interface^[5]

HDMI requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
4K60 4:4:4 performance and HDR support require the use of HDMI cables and couplers with a minimum TMDS bandwidth of 18 Gbps. If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers with a minimum bandwidth of 10.2 Gbps may be used. Please be aware that bandwidth loss is cumulative, so performance may be reduced when inserting multiple cables and couplers inline.
The analog stereo audio output is only active when the input source is outputting a 2-channel stereo signal. For applications using a multichannel surround sound source, use model DMC-4KZ-HD-DSP which provides simultaneous surround sound and stereo downmix output signals.
USB over Ethernet Extender Modules are sold separately. Refer to the USB-EXT-DM-LOCAL and USB-EXT-DM-REMOTE spec sheets for more information.
Item(s) sold separately.

(DMC-4KZ-HD-R)

Video

Input Signal Types

HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support^[2] (DVI & Dual-Mode DisplayPort compatible^[1])

Output Signal Types

HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support^[2] (DVI compatible^[1])

Copy Protection

HDCP 2.2

Maximum Resolutions

Scan Type	Resolution	Frame Rate	Color Sampling	Color Depth
Progressive	4096x2160 DCI 4K & 3840x2160 4K UHD	24 Hz	4:4:4	36 bit
		30 Hz	4:4:4	36 bit
		60 Hz	4:2:2	36 bit
		60 Hz	4:4:4	24 bit
	2560x1600 WQXGA	60 Hz	4:4:4	36 bit
	1920x1080 HD 1080p	60 Hz	4:4:4	36 bit
Interlaced	1920x1080 HD 1080i	30 Hz	4:4:4	36 bit

NOTE: Custom resolutions may be supported at pixel clock rates up to 600 MHz*.
*Due to DSC codec limitations, only 4K60 and 4K50 resolutions can be supported at pixel clock rates between 300-600MHz. For detailed information, refer to Online Help Answer ID 1001200.

Audio

Input Signal Types

HDMI (Dual-Mode DisplayPort compatible^[1])

Output Signal Types

HDMI (multichannel pass-through from input), analog stereo (2-channel pass-through from input^[3])

Digital Formats

Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels

Analog Format

Stereo 2-channel

Digital-To-Analog Conversion

24-bit 48 kHz

Analog Performance

Frequency Response: 20 Hz to 20 kHz ±0.5 dB;
S/N Ratio: >95 dB, 20 Hz to 20 kHz A-weighted;
THD+N: <0.005% @ 1 kHz;
Stereo Separation: >90 dB

Analog Volume Adjustment

-80 to 0 dB

Communications

USB

Supports signal extension of USB HID class devices, expandable to support virtually any USB 1.1 or 2.0 device using Crestron USB-EXT-DM Series USB over Ethernet Extenders^[4]

HDMI

HDCP 2.2, EDID, CEC

NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and a control system

Connectors

HDMI OUT

(1) HDMI Type A connector, female;
HDMI digital video/audio output^[2];
(DVI compatible^[1])

HDMI IN

(1) HDMI Type A connector, female;
HDMI digital video/audio input^[2];
(DVI and Dual-Mode DisplayPort compatible^[1])

USB HID

(1) USB Type B connector, female;
USB device port for connection to the USB host interface of a computer or other USB HID-compliant host

AUDIO OUT

(2) RCA connectors, female;
Unbalanced stereo line-level audio output^[3];
Output Impedance: 100 Ohms nominal;
Maximum Output Level: 2 Vrms

Construction

Plug-in card, occupies (1) DM switcher input card slot, includes metal faceplate w/black finish

Weight

8.0 oz (227 g)

HDMI requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
4K60 4:4:4 performance and HDR support require the use of HDMI cables and couplers with a minimum TMDS bandwidth of 18 Gbps. If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers with a minimum bandwidth of 10.2 Gbps may be used. Please be aware that bandwidth loss is cumulative, so performance may be reduced when inserting multiple cables and couplers inline.
The analog stereo audio output is only active when the input source is outputting a 2-channel stereo signal. For applications using a multichannel surround sound source, use model DMC-4KZ-HD-DSP which provides simultaneous surround sound and stereo downmix output signals.
USB over Ethernet Extender Modules are sold separately. Refer to the USB-EXT-DM-LOCAL and USB-EXT-DM-REMOTE spec sheets for more information.
Item(s) sold separately.
