Does not include TSW-760 Touch Screen.

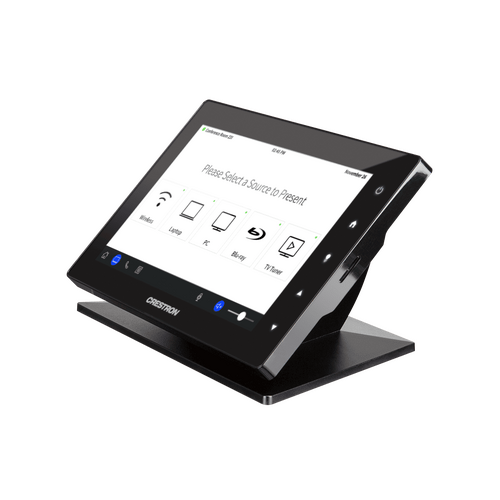

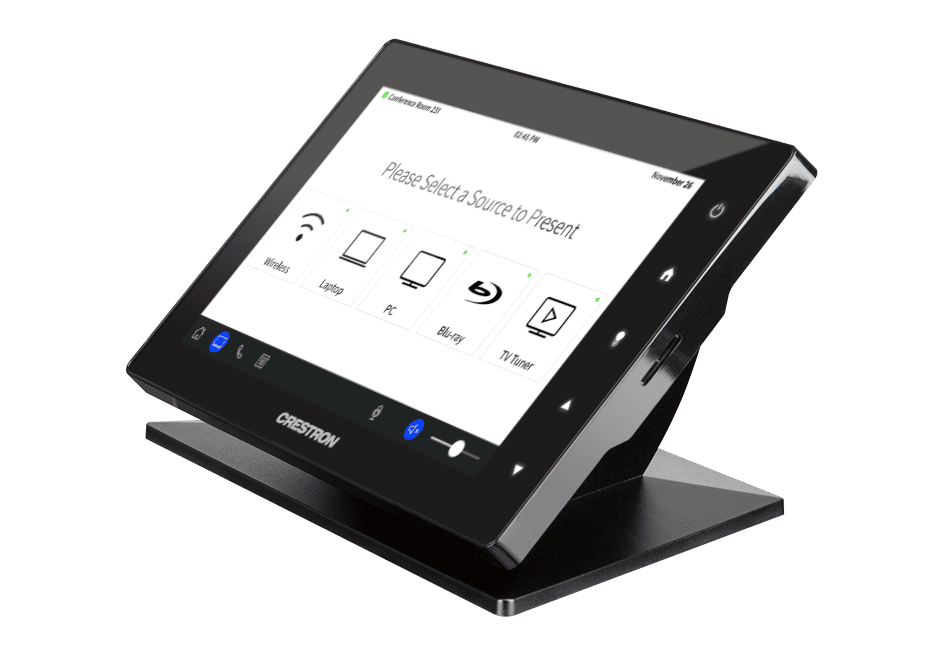

The TSW-760-TTK provides a stylish and convenient tabletop enclosure for a TSW-760 Touch Screen. The touch screen is angled when installed in the enclosure. The complete assembly may be placed on any flat, level surface.

An optional swivel mount accessory (TSW-560/760/1060-SMK) is available separately and provides a means for permanently mounting the enclosure while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of 330-degree rotation allowed. The swivel mount may be installed on any flat table, desk, or counter top surface with a thickness of 1 inch (25 mm) minimum to 1 3/8 inch (35 mm) maximum.

Wiring may be passed out the rear of the enclosure through a grommet and strain relief, or routed through the bottom for a very clean, cordless appearance. The rear wire opening can accommodate a single cable up to 1/4 inch (6 mm) diameter such as standard CAT5. The bottom opening measures 29/32 inch (23 mm) diameter, while the swivel mount [1] can accommodate wiring up to 11/16 inch (17 mm) diameter.

Key Features

  • Converts a TSW-760 to a stylish 7” tabletop touch screen
  • Provides a 38° fixed operating angle
  • Allows permanent mounting using the optional swivel mount kit [1]
  • Provides the choice of a rear or bottom wire exit
  1. TSW-560/760/1060-SMK Swivel Mount Kit sold separately.

(TSW-760-TTK-B-S)

Enclosure

Plastic, black or white;
38° fixed angle device opening;
Freestanding or swivel mount installation[1]

Dimensions

Height 3.49 in (89 mm);
3.62 in (92 mm) with swivel mount[1]
Width 7.40 in (188 mm)
Depth 4.31 in (110 mm)
With touch screen installed:
Height 4.10 in (104 mm);
4.23 in (108 mm) with swivel mount[1]
Width 7.62 in (194 mm)
Depth 4.45 in (113 mm)

Weight

12.8 oz (363 g);
26.9 oz (763 g) with touch screen installed
  1. TSW-560/760/1060-SMK Swivel Mount Kit sold separately.
SKU TSW-760-TTK-B-S
Barcode # 676821130426
Brand Crestron
Brand Crestron
Type Mounting Kit
Colour Black
Model TSW-760-TTK-B-S
Shipping Cubic 0.017794000m3
