For ceiling mounted use only, no option to vertically flip image.

Includes S520 projector, power cable, compatible Dell remote.

Enjoy a bright, colorful multimedia projection experience

  • View bright, crisp, colorful presentations with 1280x800 (WXGA) native resolution, 3100 ANSI lumens (max.), 2200:1 typical contrast ratio and BrilliantColor™ technology.

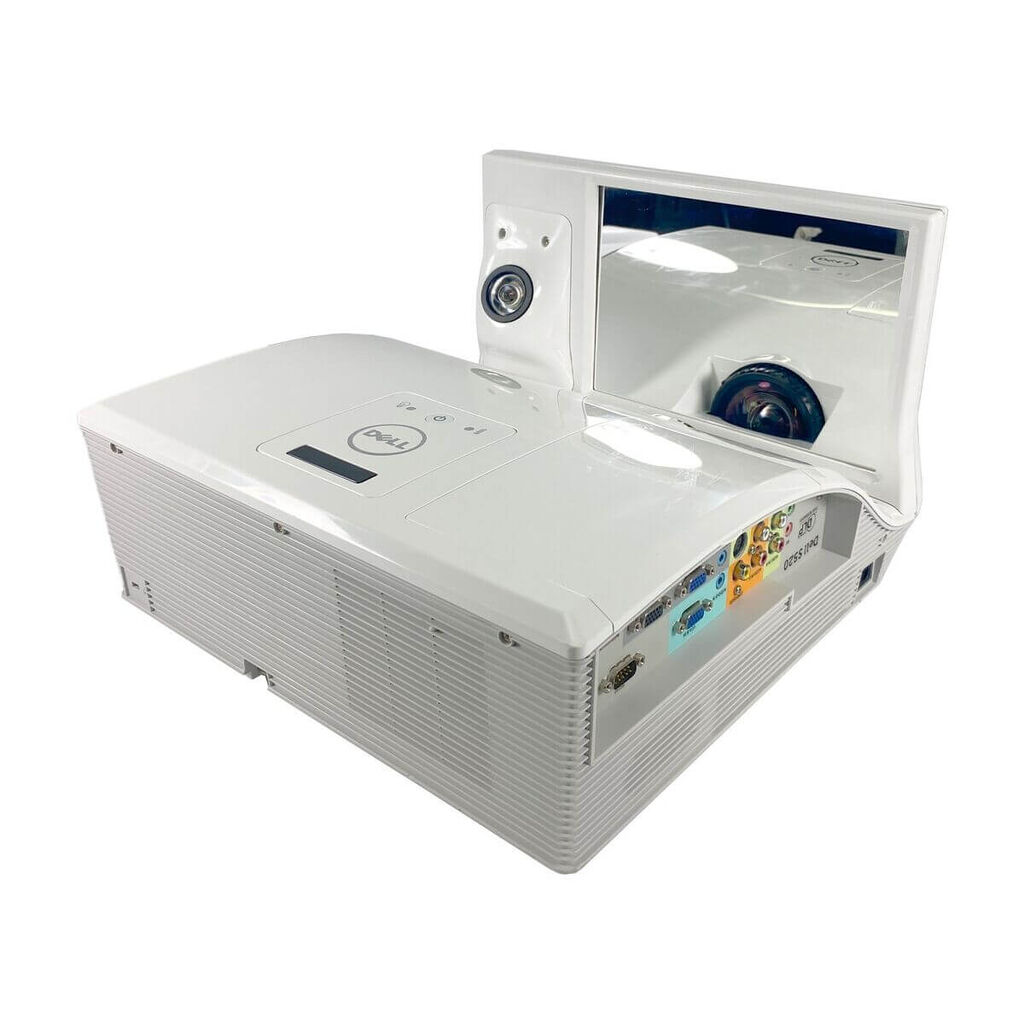

  • Get close to the action with the S520’s ultra short throw projection capabilities and the unobtrusive wall mount, which allow you to position it as close as 1.7 feet (0.52m) away from the board and still view an image up to approximately 70 inches (1.77m) diagonal, making the S520 ideal for even small rooms and reducing shadows on the screen.
  • Enable PC-free presentation, projection over network, 4-to-1 split screen, and the ability to wirelessly2 connect up to 30 users to the projector at one time.
  • Allow for LAN Display or network management control of your projector with RJ45. With Crestron Roomview compatibility, you can also have emergency broadcasting capability management-over-network functionality, convenient for fire drills and emergency system management..
  • eInstruction INTERWRITE WORKSPACE® software, an intuitive teaching tool designed to give teachers the means to interact with any form of digital content, is included with the S520.

(DellS520-R)

Make Dell
Model S520
Display Type Single chip DLP 0.65” / WXGA-800 / S450 DMD / DarkChip™ 3
Resolution 1280 x 800 (WXGA)
Video Compatibility HDMI input: 480i/p, 576i/p, 720p, 1080p
Composite Video / S-Video input: NTSC: M (3.58 MHz), 4.43 MHz / PAL: B, D, G, H, I, M, N, 60 / SECAM: B, D, G, K, K1, L
Component Video input via VGA: 480i/p, 576i/p, 720p, 1080i
Aspect Ratio 16:10
Lamp Life Up to 3,000 hours in Normal Mode / up to 4,000 hours in Eco-Mode / up to 4,500 hours in Dynamic Eco-Cycle Mode
Throw Distance 0.517m ~ 0.759m ± 0.01m (1.7 ft ~ 2.49 ft)
Image Size 1.77m ~ 2.54m (70” ~ 100“) (diagonal)

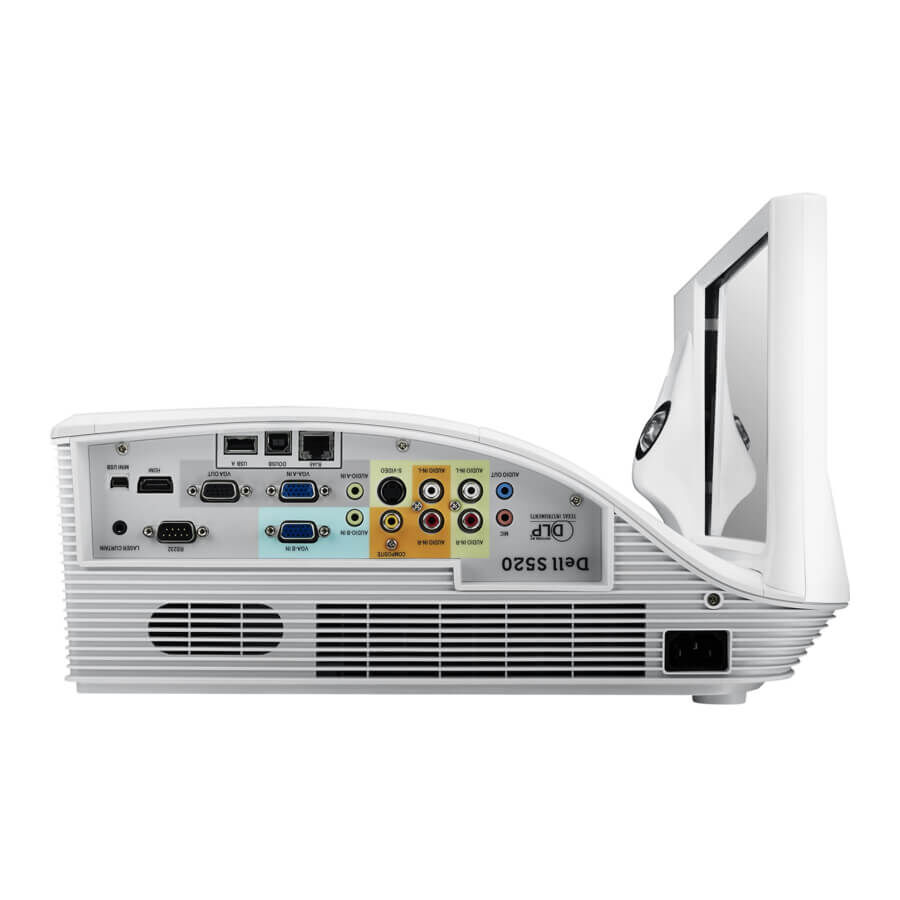

Connections POWER: AC Power socket (3-pin - C14 inlet)
HDMI INPUT: 1x HDMI 1.4a (HDCP compliant)
VGA INPUT: 2x 15-pin D-sub connectors (Blue), VGA-A and VGA-B, for analog RGB/Component input signals
VGA OUTPUT: 1x 15-pin D-sub connector (Black) for VGA-A loop through
S-VIDEO INPUT:1x standard 4-pin mini-DIN S-Video connector for Y/C signal
COMPOSITE VIDEO INPUT: 1x yellow RCA jack for CVBS signal
ANALOG AUDIO INPUT: 2x 3.5mm stereo mini phone jack (blue), 2x pairs RCA connectors (red/white)
VARIABLE AUDIO OUTPUT: 1x 3.5mm stereo mini phone jack (green)
RS232 INPUT: 1x 9-pin D-Sub for RS232 communication
USB-A PORT: 1x for PC-Free Presentation from USB flash drive, USB memory storage access (USB flash drive/ projector’s internal memory)
USB-B PORT: 1x for USB Display
MINI USB-B PORT: 1x mini USB-B slave for remote support, firmware upgrade, and laser curtain touch HID
RJ45 PORT: 1x for management-over-network and LAN display
MICROPHONE: 1x 3.5mm stereo mini phone jack (Pink)
DC JACK 12V OUTPUT: 1x 12V DC/200 mA max. output for driving laser curtain
SKU DellS520-R
Barcode # 634855120325
Brand Dell
Brand Dell
Type Projector
Model S520
Shipping Cubic 0.017794000m3
