Tested and working condition; single touch model (P/N: E329452). Driver software download from manufacturer website required for full touchscreen functionality and calibration.

Includes ET1291L monitor, compatible 12V power adapter, VESA mount adater, USB cable. Does NOT include remote.

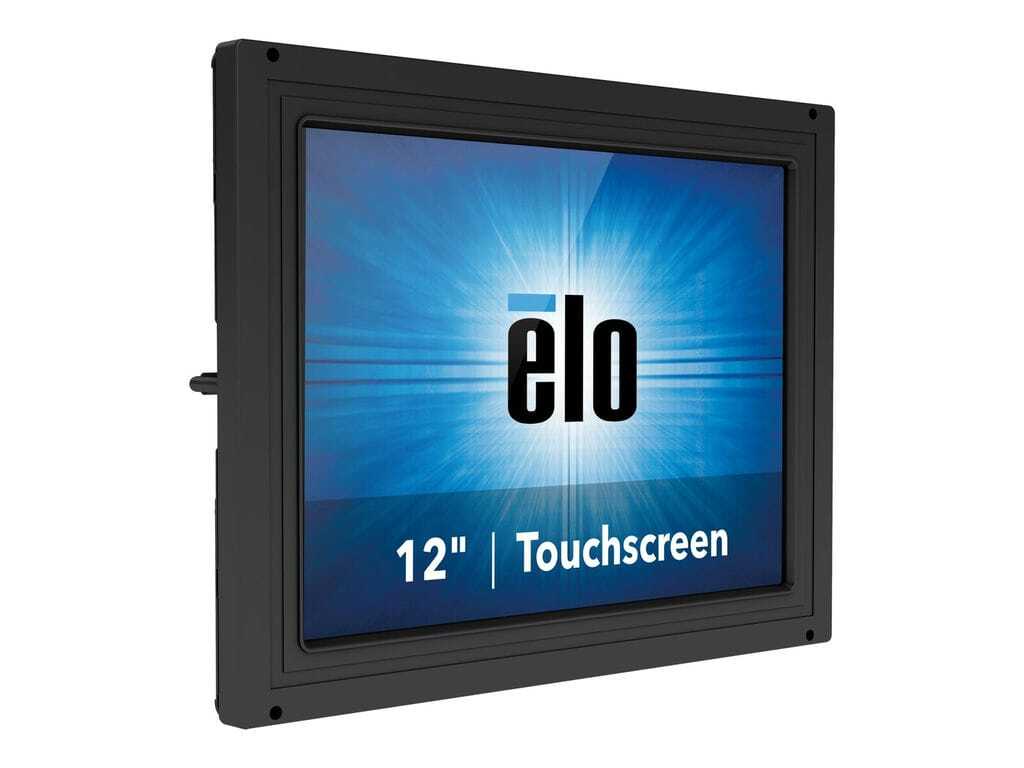

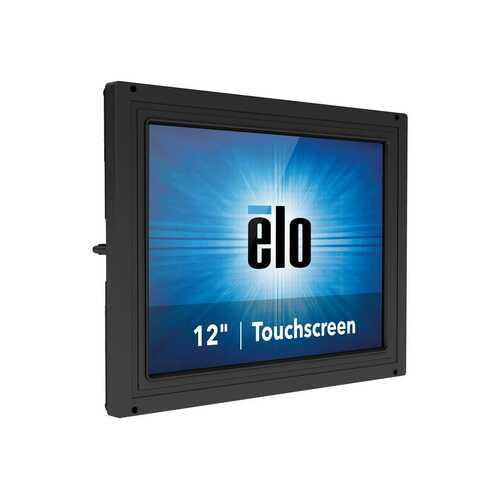

The Elo 1291L 12-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.



(ET1291L-R)

Part Number IntelliTouch (Worldwide) - E329452
Enclosure Color Black
Touch Technology & Capacity SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Touch Interface IntelliTouch - Dual serial/USB 2.0
Diagonal Size 12.1'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio 4:3
Active Area 9.69" x 7.26"/ 246mm x 184.50mm
Resolution 800 x 600 at 60 Hz
Other Supported Resolutions 640 x 480 60Hz
800 x 500 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
Viewing Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors 16.2 million
Brightness (typical) LCD panel: 450 nits
IntelliTouch: 405 nits
Response Time-total (typical) 25 msec
Contrast Ratio 1500:1
Input Video Format HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input
Input Video Frequency Horizontal: 30 - 38 KHz
Vertical: 50 - 75 Hz
Video Interface HDMI, VGA & Display Port
Power Supply External DC - Optional power brick (sold separately)
Input power connector (Monitor) Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage 12VDC +/- 5%
Adapter Output Power Connector DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical) Monitor + Adapter at 230V/50Hz
ON: 12.2 W
SLEEP: 1.5 W
OFF: 0.5W
Dimensions Bezel: 11.91" x 9.54" x 1.96" / 302.5mm x 242.2mm x 49.8mm
Zero-Bezel: 11.90" x 9.53" x 1.77" / 302.5mm x 242mm x 44.9mm
Weight (Unpackaged) 5.8 lbs / 2.65 Kg
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -20°C to 60°C / -4°F to 140°F
Humidity Operating: 20% to 80%
Storage: 10% to 95%
Sealability Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF 50,000 hours demonstrated
Mounting Options 4-hole 75mm VESA mount
Rear mount through bezel or with included mounting brackets (IntelliTouch models).
Flush mount with included mounting brackets (TouchPro PCAP models)
See dimensional drawings for details



SKU ET1291L-R
Barcode # 659359795060
Brand Elo
Brand Elo
MPN E329452
Screen Size 12 in
Model ET1291L
Shipping Cubic 0.017794000m3
