New, Opened Box Item - May differ slightly to images shown.

Designed for today’s BYOD classroom, the Epson EB-600 series takes classroom collaboration further. Offering 3x Higher Colour Brightness1 than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. It features optional wireless functionality (module sold separately) and advanced connectivity, so teachers can easily share content from multiple student devices, including Chromebooks — up to four at once with Moderator software2. Plus, its lamp lasts up to 10,000 hours in ECO Mode.

KEY FEATURES

  • 3 x Brighter Colours and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Bright Images – 3,800 lumens colour/white brightness
  • Amazing images – WUXGA resolution (1920 x 1200) and 16:10 format
  • Ultra-short throw presentation display – get a 100" image from as little as 28cm away with virtually no shadow interference
  • Simultaneously display and control multiple device screens – wirelessly share content from up to four devices, including Chromebooks, with Moderator software
  • Manage your display and send announcements remotely – easy network connectivity; software included
  • Versatile connectivity – 3x HDMI® supports multiple high-definition A/V devices, with MHL® support
  • Powerful sound to engage every student – built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
  • 10,000Hr maintenance cycle – the lamp and filter lasts up to 10,000 hours in ECO Mode

(EpsonEB-696UI-OB)

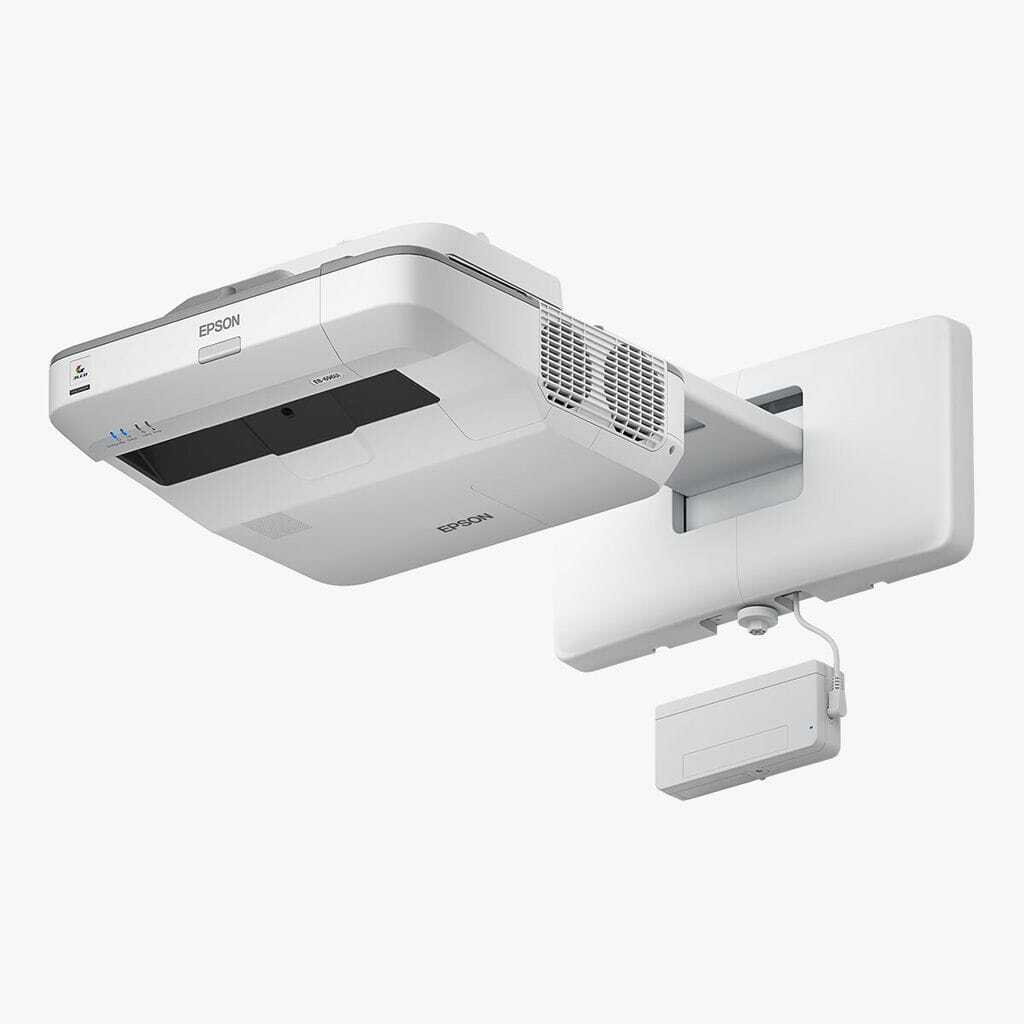

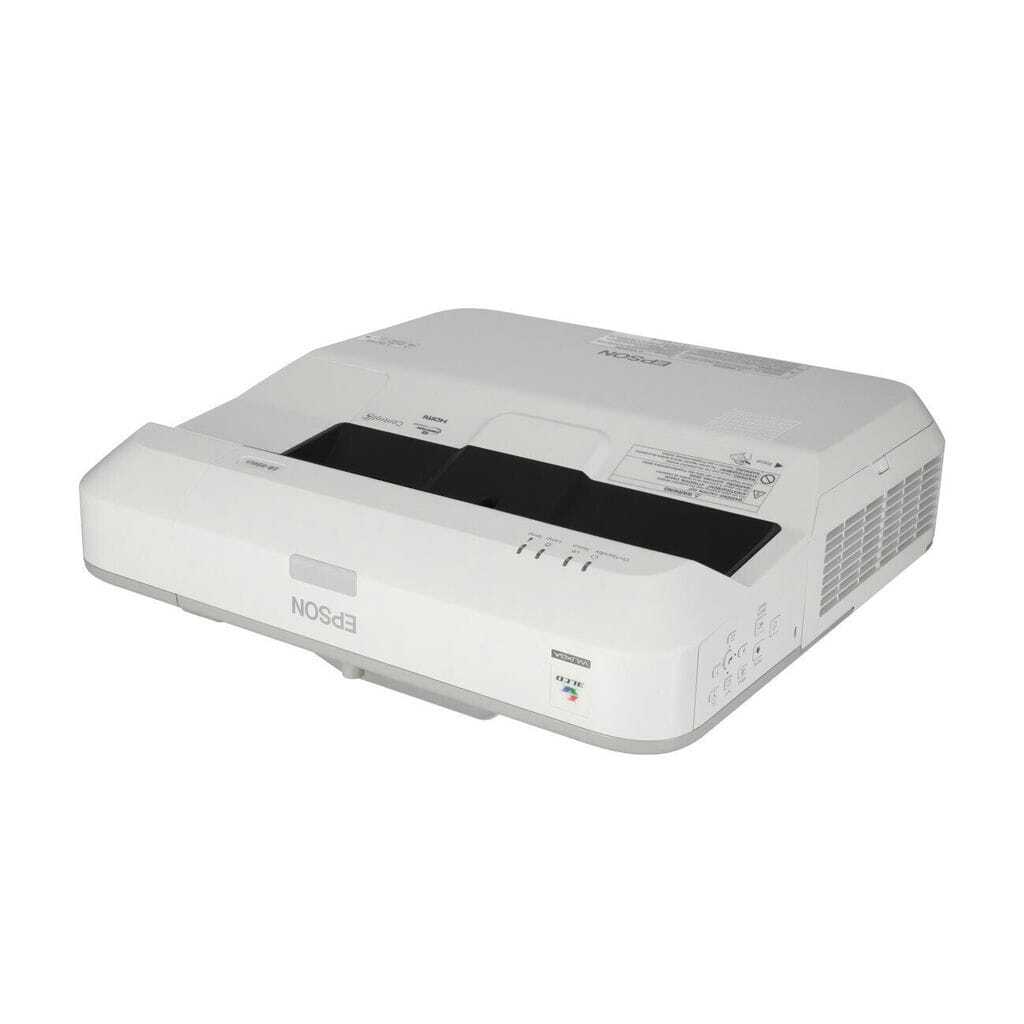

PRODUCT NAME Epson EB-696Ui
PRODUCT CODE V11H728053
TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.67-inch with (D10)
OPTICAL
Zoom Ratio 1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance) 70" to 100" [40.5 to 59.3cm]
90" screen 53 cm
Throw Ratio 0.27 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Projection Lens F Number 1.6
Projection Lens Focal Length 4.2 mm
Focus Method Manual Focus
Offset 5.8:-1
White Light Output 3,800 lumens
Colour Light Output 3,800 lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 16,000:1
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit

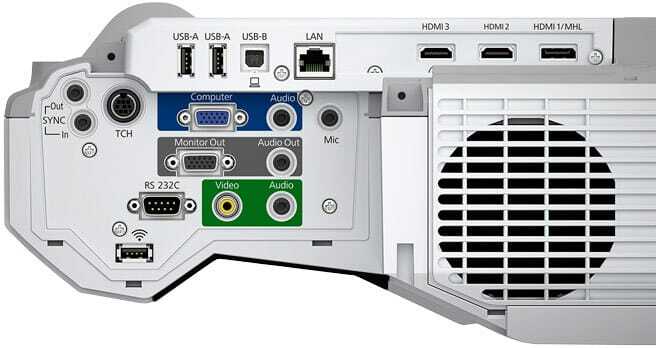

CONNECTIVITY
Video I/O - Input 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
Video I/O - Output 1x RGB D-sub 15pin
*Computer 2 in common with Monitor Out (Output signal : Computer 1 only)
Digital Input 3x HDMI (1 supports MHL)
Audio I/O - Input 3x Stereo mini
Audio I/O - Output 1x Stereo mini
Mic I/O - Input 1x Stereo mini
Control I/O 1x RS-232C D-sub 9pin
Interactive sync stereo mini - 1x In, 1x out
Touch Unit Control - 1x Min DIN 8pin
USB I/O 2x (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x (for USB Display, Mouse, K/B, Control, Interactive, Firmware update, Copy OSD settings)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit)
Wireless Connectivity Optional ELPAP10 Wireless LAN unit
Speaker Output Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network Yes
AMX Device Discovery Yes
Crestron Integrated Partner Yes
Crestron RoomView Yes
Extron IP Link Yes
Control4 Yes
EasyMP Network Multi PC Projection Yes
Message Broadcasting Yes
Easy Interactive Function Supported screen size - 70"-100"
Supports multiple screens
Technology - Infrared
Input devices:
Digital Pen (Easy Interactive Pen 1,2), Finger (1-6 fingers)
Calibration:
Pen: Auto / Manual (25points), Finger: Manual (16 points)
Finger Interactive Unit Dimension: 210x95x51mm
Weight: 450g
Technology: Infrared laser (class 1)
Adjustment: Yes (manual)
Control I/O: 1x Min DIN 8pin
Security: Kensington® - lock provision
PC Interactive Tool

Multiple pen/finger support: Yes (with Easy Interactive Tools Ver.4.20)
Easy Interactive Pen: Up to 2.
Finger: Up to 6.

PC Free Annotation Tool Multi-pen support: Yes
Easy Interactive Pen: Up to 2.
Finger: Up to 2.
Whiteboard function
Projector function
Firmware update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection Yes
Wireless LAN Security WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (Computer1,USB-B)
Security * Kensington® - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard
Integrated Mount included Yes
GENERAL
Dimensions (excl feet) WxDxH 474 x 447 x 130mm
Weight 8.3kg
Lamp Hours 5,000 hours (Normal)
10,000 hours (ECO)
Lamp Type 267W UHE
Power Consumption: Lamp On 401W (Normal)
334W (ECO)
Power Consumption: Networked Standby 3.0W
Power Consumption: Energy Saving 0.32W
Air Filter maintenance cycle up to 10,000 hours
Fan Noise Level 37dB (Normal)
30dB (ECO)

WHAT'S IN THE BOX
Main Unit EB-696Ui Projector
Mount ELPMB46
Power Cable Yes 5M
USB Cable Yes 5M
Remote Control Yes
Battery for Remote Control AA x 2
Setting Plate No
Easy Interactive Pen 2 Pens
Battery for Easy Interactive Pen AA x 2
Pen Tray Yes
Pen tip (Soft) x4
Pen tip (Hard) x2
Pen tip Holder Yes
Light Curtain Finger Touch Unit Yes
Feet for main unit  No
Password Protect sticker Yes
SKU EpsonEB-696UI-OB
Barcode # 9314020620843
Brand Epson
Brand Epson
Type Projector
Model EB-696UI
Shipping Cubic 0.017794000m3
