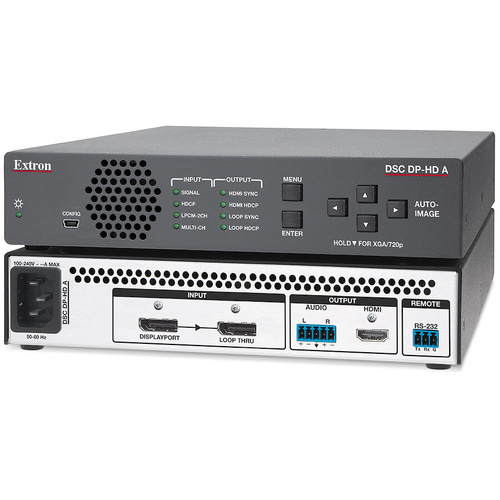

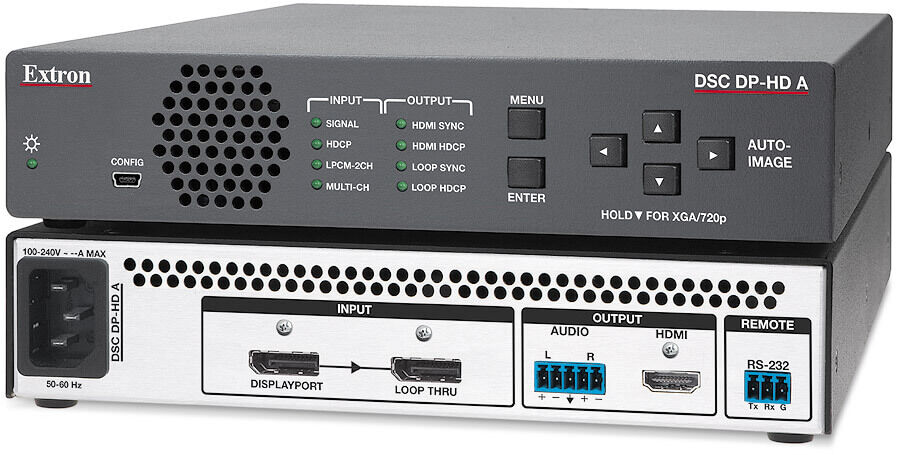

The Extron DSC DP‑HD A is a high performance, HDCP-compliant scaler that converts DisplayPort signals to HDMI. It accepts DisplayPort video at resolutions up to 3840x2160 @ 30 Hz with reduced blanking, and offers high performance scaling with multiple output rates up to 1920x1200, including 1080p/60 and 2K. The DSC DP‑HD A features advanced Extron video signal processing with deinterlacing of signals up to 1080i, and Deep Color processing. It includes many integrator-friendly features such as auto-memory presets, on‑screen display, test patterns, EDID Minder®, stereo audio de‑embedding, and a DisplayPort input loop-through, while the compact enclosure simplifies installation. The DSC DP‑HD A is ideal for interfacing high resolution DisplayPort signals into AV systems with an HDMI switching and distribution infrastructure.



Key Features

  • DisplayPort to HDMI video scaling
  • Accepts DisplayPort signals up to 3840x2160 @ 30 Hz with reduced blanking
  • Buffered DisplayPort input loop‑through enables local monitoring at original signal resolution
  • Advanced scaling engine with 30‑bit precision processing and motion-adaptive deinterlacing for signals up to 1080i
  • DisplayPort audio de‑embedding
  • Selectable output rates from 640x480 to 1920x1200, including 1080p/60 and 2K

(DSC-DP-HD-A-R)

Video input and loop through
   Number/signal type  1 DisplayPort input (HDCP compliant)
1 DisplayPort loop-through (HDCP compliant)
   Connectors  1 female DisplayPort input
​1 female DisplayPort loop-through
   Horizontal frequency  15 kHz to 100 kHz
   Vertical frequency  24 Hz to 75 Hz
   Resolution range  640x480 @ 60 Hz through 2560x1600 @ 60 Hz*, 3840x2160 @ 30 Hz*, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, and 2K (2048x1080)
*reduced blanking only
   Formats  RGB and YCbCr digital video
   Standards  DisplayPort 1.1a, HDCP

Video processing
   Maximum data rate  Up to 10.8 Gbps (2.7 Gbps per lane)
   Maximum pixel clock  268 MHz
   Color bit depth  12 bits for resolutions up to 1080p
10 bits for all resolutions above 1080p
   Colors  1.07 billion (10-bit processing)

Video output
   Number/signal type  1 HDMI/DVI (HDCP compliant)
   Connectors  ​1 female HDMI type A
   Peripheral device power  250 mA per output
   Vertical frequency  23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz
   Scaled resolutions  640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1680x10508, 1600x12008, 1920x12008
HDTV: 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2K (2048x1080)1,2,3,4,5,6,7,8

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz,4 = at 29.97 Hz, 5 = 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz

Audio output
   Number/signal type  1 DisplayPort — loop output embedded
1 HDMI, embedded
​1 stereo, balanced or unbalanced (variable)
   Connectors  1 female DisplayPort
1 female HDMI type A
(​1) 3.5 mm captive screw, 5 pole
   Impedance  50 ohms unbalanced, 100 ohms balanced
   Gain error  ±0.5 dB, channel to channel
   Maximum level (Hi-Z)  >+21 dBu, balanced; >+15 dBu, unbalanced
   Output volume range  0 to -100 dB in 1 dB steps

Communication
   Pin configurations  1 = Tx, 2 = Rx, 3 = Gnd
   Serial control port  1 RS-232, 3-pole captive screw connector (rear panel)
   Baud rate and protocol  9600, 8 data bits, 1 stop bit, no parity ​(default)
   USB control port  1 female USB mini-B (front panel)
   Program control  On-screen display (OSD) via front panel control
Extron Simple Instruction Set (SIS™)
​Extron control/configuration program for Windows®

General
   Power supply  Internal
Input: 100-240 VAC, 50-60 Hz
   Power consumption  13.5 watts
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Fan, air flows from front to rear
   Thermal dissipation  43.6 BTU/hr
   Mounting
      Rack mount  Yes, with optional rack shelf
      Furniture mount  Yes, with optional under-desk mounting kit
   Enclosure type   Metal
   Enclosure dimensions  1.65" H x 8.75" W x 8.5" D (1U high, half rack wide)
(4.4 cm H x 22.2 cm W x 21.6 cm D)
(Depth excludes connectors.)
   Product weight   2.1 lbs (1.0 kg)
   Shipping weight   4 lbs (2 kg)
   Vibration   ISTA/NSTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
SKU DSC-DP-HD-A-R
Barcode # 613527476472
Brand Extron
Brand Extron
Type Video Scaler
Model DSC DP-HD A
Shipping Cubic 0.017794000m3
