The Extron MLA VC10 Plus Volume Control Module converts RS-232 commands from a control system into voltage or impedance changes to control audio amplifiers with volume and mute control ports. The MLA VC10 Plus is used to mute or make level changes on an MPA Series or half rack XTRA™ Series amplifier from a TouchLink® Touchpanel system, an RS-232-capable MediaLink® Controller, or other control system. The control module also supports third-party amplifiers that use either voltage or 10k ohm pot control. The MLA VC10 Plus is housed in a 1U, one-eighth rack width metal enclosure for numerous installation options.

Key Features

  • Volume and mute control for the MPA Series or half rack XTRA Series amplifiers as well as a wide range of commercial amplifiers
  • For use with MediaLink Controllers with RS-232, TouchLink Touchpanel systems, and other control systems
  • Adjust amplifier volume level using voltage or resistance control
  • Ground isolated, digital circuitry prevents noise in signal path
  • Soft Start volume ramping gently restores volume levels during power cycles and unmuting
  • Selectable volume taper provides a consistent linear or natural logarithmic feel to volume changes

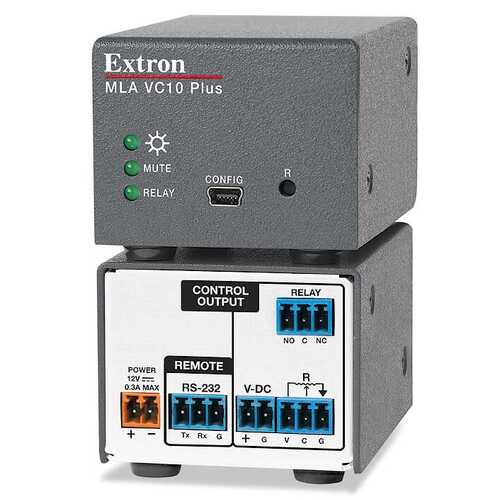

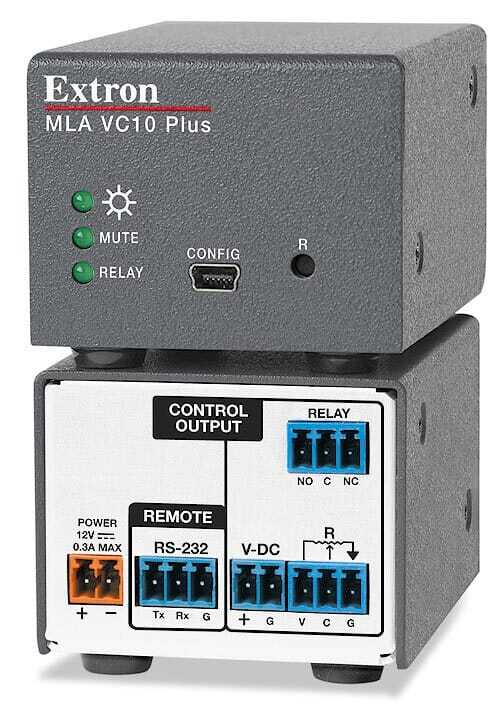

(MLA-VC10-Plus-OB)

Control/remote — MLA volume controller
   Serial control port  1 RS-232, 3.5 mm captive screw connector, 3 pole
   Baud rate and protocol  9600 baud, 8 data bits, 1 stop bit, no parity
   Serial control pin configuration  1 = Tx, 2 = Rx, 3 = GND
   USB control ports  1 front panel female mini USB B
   USB standards  USB 2.0, low speed
    NOTE     The USB connector provides 5 VDC for configuration purposes only.  This port cannot be used to supply power during operation.
   Program control  Extron Simple Instruction Set (SIS)
Control — voltage — amplifier
   Number/type  1 control voltage
   Connectors  (1) 3.5 mm captive screw connector, 2 pole
   Pin configuration  1 = +, 2 = GND
   Control voltage output range  0 - 10 VDC (typical tolerance ±0.2 volts), adjustable
Control — resistance — amplifier
   Number/type  1 control resistance
   Connector  (1) 3.5 mm captive screw connector, 3 pole
   Pin configuration  1 = +, 2 = wiper, 3 = GND
   Range  0 - 10 kilohms (typical tolerance ±0.2 kilohms), adjustable
   Max. input voltage  25 VDC
   Max. current/power rating  5 mA/25 mW across the + and wiper or GND and wiper pins
Control — relay — amplifier
   Number/type  1 momentary or latching
   Connector  (1) 3.5 mm captive screw connector, 3 pole
   Connector configuration  1 = 1 normally open relay, 2 = common, 3 = 1 normally closed relay
   Contact rating  24 V, 1 A
General
   Power  Supplied by a 12 VDC, 1 A external power supply (sold separately) or a MediaLink® or IP Link® controller
   Power input requirements  12 VDC, 0.3 A (max.)
   Temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, no vents
   Mounting
      Rack mount  Yes, with optional 1U rack shelf or back of the rack mounting kit
      Furniture mount  Yes, with optional mini under-desk mounting kit, or set on tabletop
   Enclosure type  Metal
   Enclosure dimensions  1.7" H x 2.2" W x 3.0" D (1U high, one-eighth rack wide)
(4.3 cm H x 5.6 cm W x 7.6 cm D)
(Depth excludes connectors.)
   Product weight  0.2 lbs (0.1 kg)
   Shipping weight  1 lb (0.5 kg)
   Vibration  ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
      Environmental  Complies with the appropriate requirements of RoHS, WEEE.
   Product warranty  3 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU MLA-VC10-Plus-OB
Barcode # 608539306688
Brand Extron
Brand Extron
Type Volume Control Module
Model MLA VC10 Plus
Shipping Cubic 0.017794000m3
