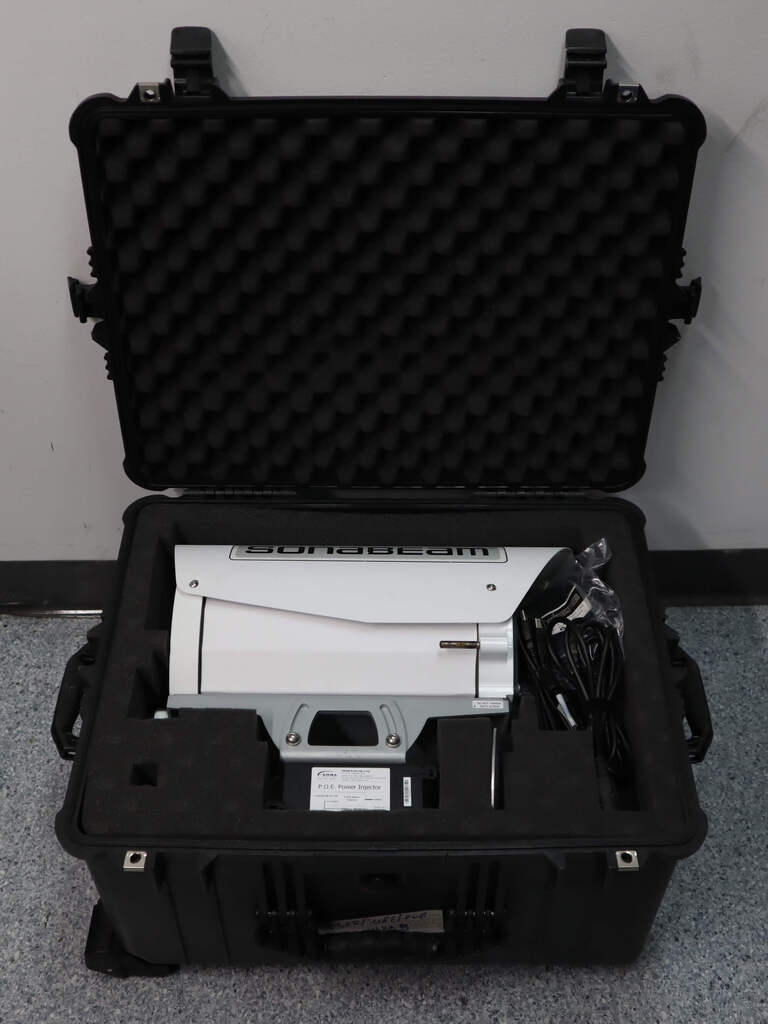

Tested to power on. Includes SONAbeam 1250-E optical transceiver, PoE injector, power cable, USB cable, ethernet cable, hard case, tripod stand. Extra nuts/washers may be required for use with stand.

The SONAbeam E series is extremely versatile. It’s compact, yet rugged aluminum housing is equally at home outdoors in challenging weather as it is indoors operating through a window. The SONAbeam E can be easily transported to installation sites making it ideal for situations that require rapid deployment.

 Like all SONAbeams, the E series offers full-rate, full-duplex bandwidth. The E Series supports native Ethernet and offers the added flexibility of protocol transparent operation to support custom datarates.

(SONAbeam-1250-E-R)

Free-Space Optical

Transmission rates Gigabit Ethernet: 1.25 Gbps, full duplex
OC-12/STM-4: 622 Mbps, full duplex
CPRI 1/CPRI 2
Operational range 3 dB/km clear air: 50m to 2700m (160ft to 1.7mi)
10 dB/km extreme rain: 50m to 1400m (160ft to 0.9mi)
Laser output power 320 mW peak (2 x 160 mW)
Free-space wavelength 1550 nm
Receive aperture 10 cm (4 in) diameter

Interface Option 1 - 1000-Base-SX (850 nm)

Data physical interface Multimode fiber, LC
Fiber xmtr/rcvr wavelength 850 nm nominal
Fiber xmtr output power -9 dBm (min), -3 dBm (max)
Fiber rcvr input power 0 dBm (min), -17 dBm (max)

Interface Option 2 - 1000-Base-LX (1310 nm)

Data physical interface Singlemode fiber, LC
Fiber xmtr/rcvr wavelength 1310 nm nominal
Fiber xmtr output power -11 dBm (min), -3 dBm (max)
Fiber rcvr input power -20 dBm (min), -3 dBm (max)

Mechanical / Electrical / Environmental

Operating temperature -40ºC to 60ºC (-40ºF to 140ºF)
Pointing stability 120 km/h (75 mp/h) operating,
>160 km/h (100 mp/h) survivability
Environmental seal Water-tight, IP66 and NEMA-4 certified
Dimensions (W*H*D) 25 x 33 x 46 cm; 10 x 13 x 18 in
Weight Optical Head: 10 kg (22 lbs);
Input voltage -48 VDC (-40 V to -57 V) or 100-240 VAC
Power consumption (electronics & heater) 40 watts max (w/ heater)

Carrier-Class Reliability and Durability

Window heating Prevents fogging, snow/sleet accumulation
Laser cooling Active solid state cooling to 35ºC (95ºF)
Power supply Telco grade, >550,000 hour
Structure Aluminum housing/steel mount
Element Management and Control
Management interface USB, Serial & 10/100-baseT
SNMP Embedded v.1 agent
GUI control program SONAbeam™ Terminal Controller STC
Command line interface Via USB, RS232 or IP address
Key parameters monitored Receive signal strength
Power supply currents and voltages
Laser currents
Laser power (APC levels)
Laser temperatures
Internal temperature
Clock recovery / sync status
Network interface signal status
Historical logging Internal data and event logging

Certifications and Classifications

  USA Canada International
Laser safety CDRH 21 CFR 1040 inlcuding Laser Notice 50, Class 1M
ANSI Z136.1 & Z136.6, Class 1
CDRH 21 CFR 1040 inlcuding Laser Notice 50, Class 1M

IEC 60825-1 Class 1M

EMC FCC - Part 15 ICES - 003

EN55022 - emissions
EN55024 - immunity

Electrical safety UL 60950 CSA 60950 EN60950
(CB scheme)
SKU SONAbeam-1250-E-R
Barcode # 613527246242
Brand fSONA
Brand fSONA
Type Laser Link
Model SONAbeam 1250-E
Shipping Cubic 0.017794000m3
