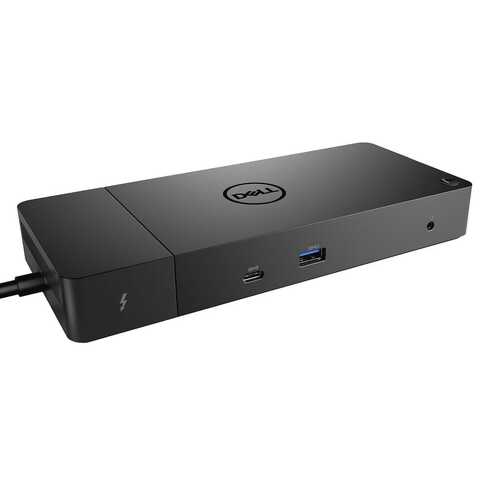

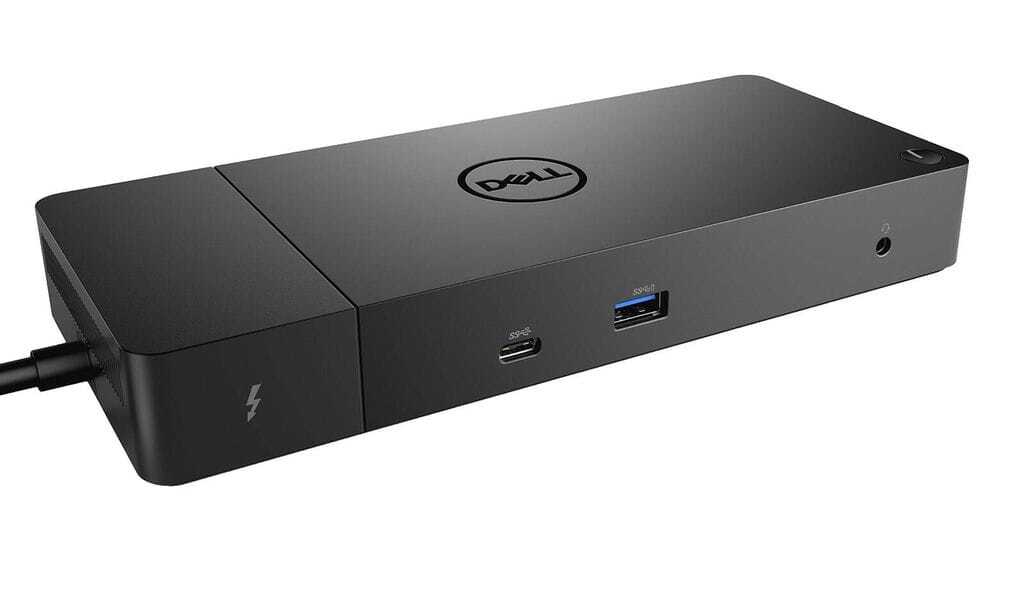

The Dell Thunderbolt Docking Station WD19TB is a device that links all your electronic devices to your computer using a Thunderbolt 3 (Type-C) cable interface. Connecting the computer to the docking station allows you to access all peripherals (mouse, keyboard, stereo speakers, external hard drive, and large-screen displays) without having to plug each one into the computer.

(DELL-WD19TB-R)

FEATURES SPECIFICATIONS

Standard

Thunderbolt 3 (Type-C)

Video Ports

  • USB 3.1 Gen1/Gen2 Type-C with DisplayPort 1.4 or HDMI2.0 x1
  • DisplayPort++ 1.4 x2
  • Rear Thunderbolt 3 (Type-C), when connected to a Thunderbolt 3 host.

Audio Ports

  • Front Headset connector x1
  • Rear Line out x1

Network Port

  • Gigabit Ethernet (RJ-45) x1
  • Support Wake On LAN from S3, S4, or S5 sleep state with select Dell systems. See platform setup guide for more details.
  • Support MAC Address Pass-Through with select Dell systems. See platform setup guide for more details.

USB Ports

  • Front USB 3.1 Gen1 x1: Dell PowerShare BC1.2; 2 A @ 5 V (max 10 W)
  • Front USB 3.1 Gen1/Gen2 Type-C: 1.5 A @ 5 V (max 7.5 W)
  • Rear USB 3.1 Gen1 x2: 0.9 A @ 5 V (max 4.5 W)
  • Rear USB 3.1 Gen1/Gen2 Type-C with DisplayPort 1.4 x1: 1.5 A @ 5 V (max 7.5 W) @ 5 V (max 15 W)
  • Rear Thunderbolt Type-C Port: 3 A @ 5 V (max 15 W)

DC-in Port

7.4 mm DC-in port x1

USB Type-C cable length

0.8 m

Power delivery

Dell systems
  • 130 W power capability to Dell systems with 180 W AC-adapter
Non-Dell systems
  • Maximum 90 W to Non-Dell system with 180 W AC-adapter

Button

  • Sleep/Wakeup/Power button

Dimension

205 mm x 90 mm x 29 mm

Weight

620 g / 1.37 lbs

Power adapter weight

600 g / 1.32 lbs

Temperature range

Operating: 0°C–35°C (32°F–95°F)

Non-operating:
  • Storage: -20°C to 60°C (-4°F to 140°F)
  • Shipping: -20°C to 60°C (-4°F to 140°F)

Relative humidity

Operating: 10% to 80% (non-condensing)

Non-operating:
  • Storage: 5% to 90% (non-condensing)
  • Shipping: 5% to 90% (non-condensing)

VESA Mounting options

Yes—using Dell Docking station mounting kit

PORTS CONNECTORS

Video Ports

  • DisplayPort++ 1.4 x2
  • USB 3.1 Gen1/Gen2 with DisplayPort 1.4 or HDMI2.0 x1
  • Rear Thunderbolt 3 (Type-C), when connected to a Thunderbolt 3 host.

Input/Output Ports

  • USB 3.1 Gen1 x 2
  • USB 3.1 Gen1 with PowerShare x 1
  • USB 3.1 Gen1/Gen2 Type-C
  • Type-C Thunderbolt 3 port or Type-C USB2.0 port
  • 7.4 mm DC-in x 1
  • Gigabit Ethernet (RJ–45) x 1
  • Headset connector x 1
  • Line-out connector x 1
SKU DELL-WD19TB-R
Barcode # 697937253786
Brand Dell
Brand Dell
Type Docking Station
Model WD19TB
Unit Of Measure ea
