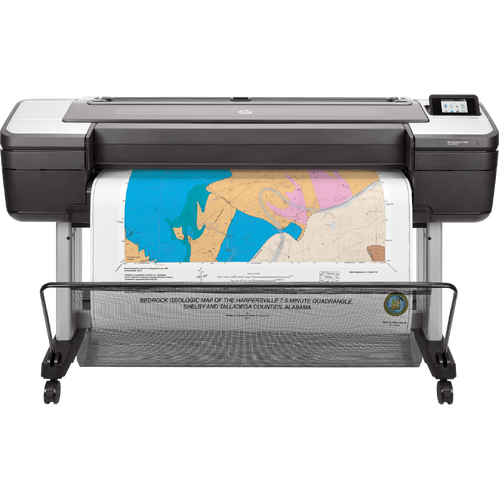

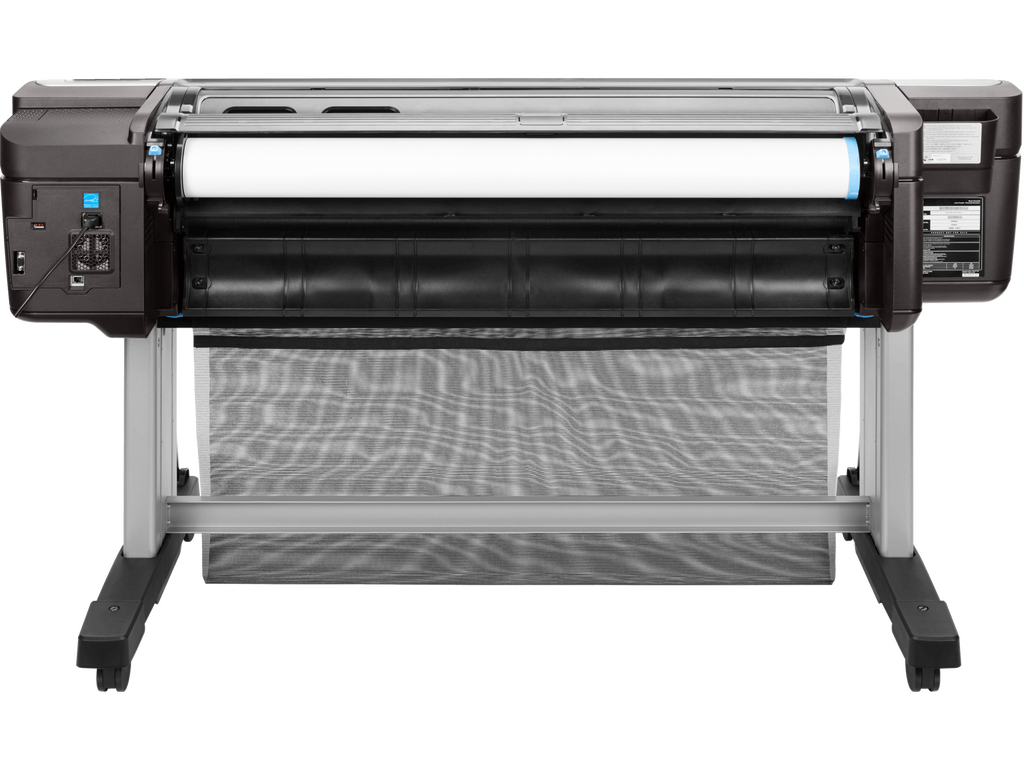

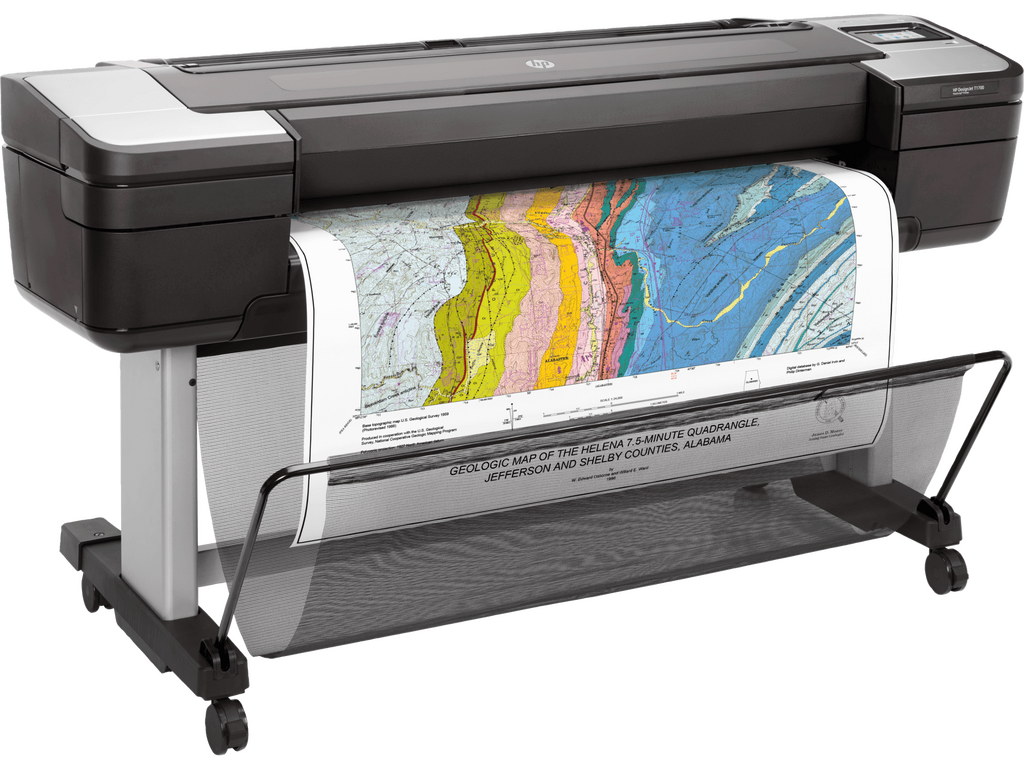

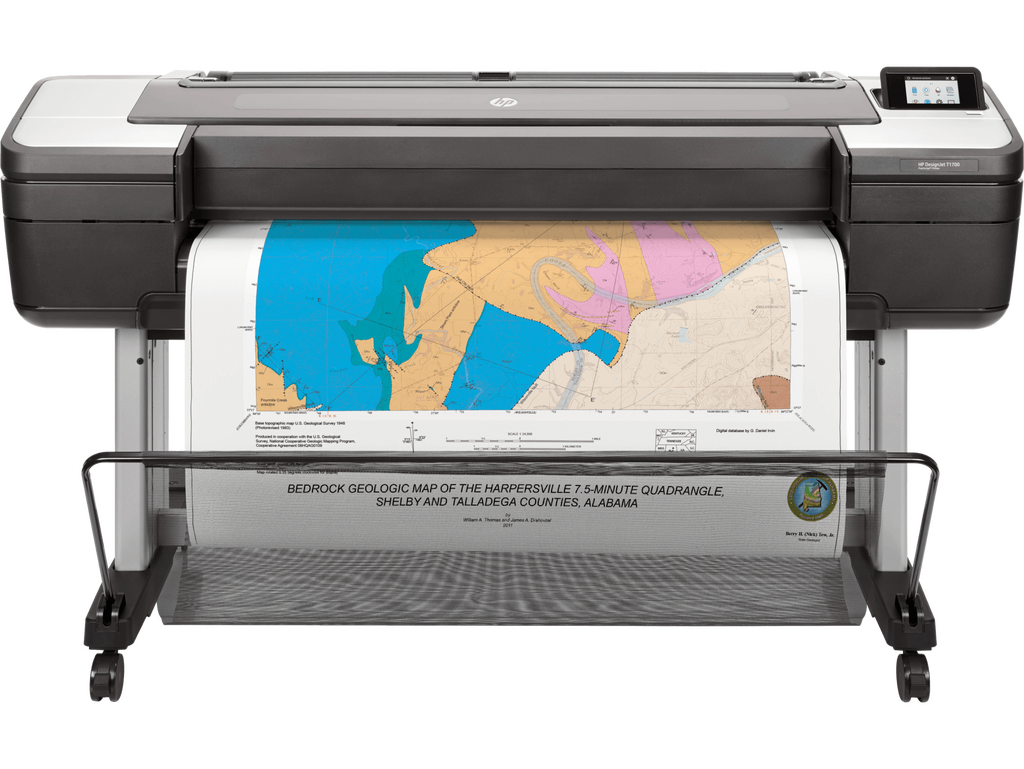

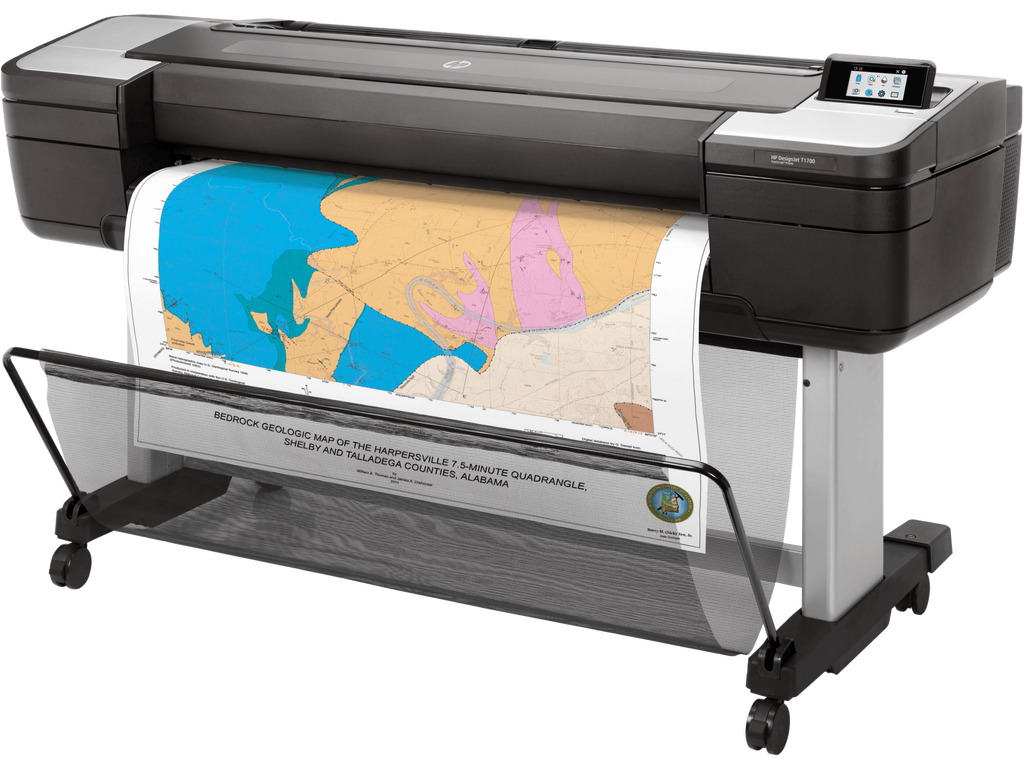

HP DesignJet T1700dr 44 in PostScript Large Format Printer (1VD88A) - New, Open Box SKU: DesignJetT1700dr-PS-OB
New
Brand New, Open Box Item. Original packaging is damaged.
Securely, efficiently, and accurately produce quality CAD and GIS applications up to 44 inches
SECURE—Protect your work and your information
- Protect printers/data from unauthorized access with HP Secure Boot, whitelisting, encrypted hard disk, more.
- Protect documents, preserve confidentiality with authentication solutions like PIN printing, card readers.3
- Secure your printers with HP JetAdvantage Security Manager; manage your fleet remotely with HP Web Jetadmin.
- Control and optimize printing costs with accounting solutions—or with your reseller through HP Partner Link.
EFFICIENT—No more PC freezing up
- Adobe PDF drivers2 free up your computer immediately after sending to print—even for the most complex files.
- No interruptions—dual-roll options reduce roll changes; two rolls double capacity, help switch paper types.4
- Handle complex files—powerful processing architecture1, 128 GB memory5, 500 GB HDD at 116 A1/D pgs/hr.
- Easily print project sets and PDF documents with HP Click printing software.
ACCURATE—Make better decisions with precise colors
- Get bright color and bold image quality—even on plain papers—with HP Bright Office Inks.
- Reproduce transparencies, layers, color palettes, and gradients with embedded Adobe PDF Print Engine.2
- Tuned profiles reproduce distinct shades of color; color/gray/photo black inks make soft colors, dark tones.
- Accurately display data—high-density printheads provide 2400 nozzles per inch, enabling 0.1% line accuracy.6
- Refers exclusively to file processing capabilities for complex files, and does not refer to print speed.
- Requires purchase of HP DesignJet T1700 PostScript® models or optional HP DesignJet PostScript/PDF Upgrade Kit. The Adobe PDF Print Engine (APPE) is Adobe’s high speed, high fidelity print platform. Version 4 extends APPE’s leading edge for print reproduction with new performance efficiencies and breakthrough rendering features. APPE 4 enables printers to increase workflow efficiency and capitalize on the profit potential of innovations in inkjet print technology. To learn more, visit https://www.adobe.com/products/pdfprintengine.html
- Card reader functionality enabled through optional third-party solutions.
- Dual-roll printing is available on the HP DesignJet T1700dr 44-in Printer and HP DesignJet T1700dr 44-in PostScript® Printers.
- Based on 4 GB DDR3 RAM.
- ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23°C (73°F), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Matte Film and HP Bright Office Inks. 3 2 4 1 5 2 6 1
(DesignJetT1700dr-PS-OB)
| Functions |
|
|---|---|
| Print speed |
116 A1/hr, 26 sec/A1 1 |
| Ink drop |
6 pl |
| Print head nozzles |
2112 each colour |
| Print cartridge/bottle volume delivered |
Cyan, magenta, yellow, photo black, matte black, grey (300 ml); Cyan, magenta, yellow, photo black, matte black, grey (130 ml) |
| Ink types |
Dye-based (C, M, Y, PK, G); pigment-based (MK) |
| Print Cartridges/Bottle, Number |
6 (cyan, magenta, yellow, photo black, matte black, grey) |
| Print heads |
3 universal printheads, 2 colours each |
| Print Cartridge/Bottle, Color(s) |
Cyan, magenta, yellow, photo black, matte black, grey |
| Print quality color (best) |
Up to 2400 x 1200 optimised dpi |
| Maximum optical density (black) |
2.15 maximum black optical density (6 L*min) |
| Finished output handling |
Sheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter |
| Media sizes standard (metric rolls) |
279 to 1118-mm |
| Roll external diameter |
135 mm |
| Roll maximum input |
2 |
| Roll maximum weight |
11.9 kg |
| Recommended media |
C6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft);C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft);Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft);Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft) |
| Media thickness |
Up to 31.5 mil |
| Media thickness (metric) |
Up to 0.8 mm |
| Media width, maximum |
1118 mm |
| Supported Primary Applications |
Line drawings; Maps; Orthophotos; Presentations; Renderings |
| Non-printable area (cut-sheet) |
3 x 17 x 3 x 3 mm |
| Non-printable area (roll media) |
3 x 3 x 3 x 3 mm |
| Media sizes, custom |
210 x 279 to 1118 x 1676 mm |
| Media sizes supported |
A4, A3, A2, A1, A0 |
| Media types |
Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl) |
| Media weight, recommended |
60 to 328 g/m² |
| Model size |
1118 mm |
| Internal Storage |
500 GB self-encrypting |
| Line accuracy |
±0.1% 2 |
| Printer drivers included |
Raster drivers for Windows and macOS; PostScript and PDF Windows drivers and macOS PostScript driver with optional PostScript/PDF Upgrade Kit |
| Print languages |
HP-GL/2, TIFF, JPEG, URF, CALS G4 |
| Print technology |
HP Thermal Inkjet |
| Theoretical minimum line width |
0.02 mm (PDF addressable @ 1200 dpi) |
| Optional printer languages |
Adobe PostScript 3; Adobe PDF 1.7 ext 3 |
| Printing path |
Direct printing from USB flash drive, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android |
| Connectivity, standard |
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port |
| Connectivity, optional |
HP USB 3.0 to Gigabit LAN Adapter |
| HP ePrint capability |
Yes |
| Network ready |
Standard |
| Security features |
HP Wolf Pro Security, HP Secure Boot, Allowlisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, PIN printing |
| Mobile printing capability |
Direct print for mobile apps for iOS, Android and Chrome OS; E-mail printing with HP ePrint and HP Smart app for iOS and Android |
| Minimum dimensions (W x D x H) |
1802 x 695 x 998 mm |
| Package dimensions (W x D x H) |
1955 x 770 x 710 mm |
| Weight |
89.4 kg |
| Package weight |
128 kg |
| Memory |
128 GB (virtual) 3 |
| Acoustic power emissions (active, printing) |
6.1 B(A) (operating), 5.0 B(A) (idle), <3.1 B(A) (sleep) |
| Acoustic pressure emissions |
45 dB(A) (operating), 32 dB(A) (idle), <15 dB(A) (sleep) |
| Operating humidity range |
20 to 80% RH |
| Non-Operating Humidity Range |
0 to 90% RH |
| Operating temperature range |
5 to 40ºC |
| Operating temperature range |
41 to 104ºF |
| Storage temperature range |
-25 to 55ºC |
| Storage temperature range |
-13 to 131ºF |
| Power consumption |
< 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off) |
| Power |
Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max |
| Software included |
HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS |
| Electromagnetic compatibility |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Energy star certified |
Yes |
| Environmental certification |
ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver |
| Safety |
USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS) |
| What's in the box |
HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits |
Footnotes and disclaimers
- 1. Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.
- 2. ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks.
- 3. Based on 4 GB RAM.
| SKU | DesignJetT1700dr-PS-OB |
| Barcode # | 191628122202 |
| Brand | HP |
| Brand | HP |
| Type | Large Format |
| Model | DesignJet T1700dr |
| Shipping Cubic | 1.068798500m3 |
