Pulled From Working PC. Comes with Card ONLY, No Antenna

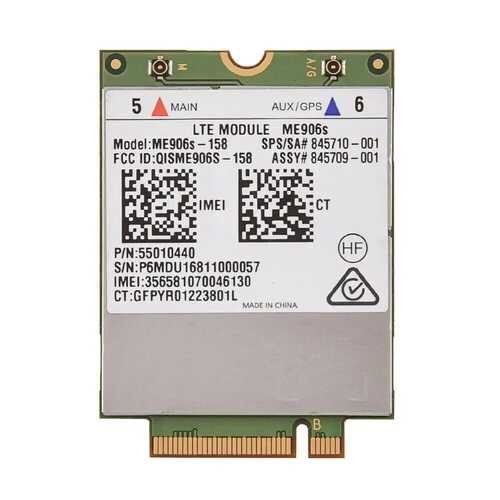

Huawei ME906s 4G LTE Mobile Broadband M.2 WWAN Card (4XC0L09013) is an embedded PCI Express M.2 WWAN Card, which enables end users to have mobile access to the internet or corporate network with flexibility and high speed, including ‘always online’ capability. ME906s is a user-friendly and cost-effective solution that helps users quickly and conveniently enjoy high-speed broadband network access anywhere anytime.





(Huawei-ME906s-R)

Huawei ME906s-158 technical specifications:

* Category: LTE Cat4 Module

* Form Factor: 75-pin M.2/NGFF

* Support 4G LTE (FDD) B1/B2/B3/B5/B7/B8/B20/B28

* LTE FDD: DL 150 Mbps/UL 50 Mbps @20M BW cat4

* Support 3G DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8

* DC-HSPA+: DL 42Mbps/UL 5.76 Mbps

* HSPA+: DL 21.6 Mbps/UL 5.76 Mbps

* WCDMA PS: DL 384 kbps/UL 384 kbps

* Support 2G EDGE/GPRS/GSM 1900/1800/900/850 MHz

* LTE DL 2*2 and 4*2 MIMO

* Power supply: 3.135 V to 4.4V (typical: 3.3V)

* AT commands:
- 3GPP TS 27.007 and 27.005
- Huawei extended AT command

* SMS Features
- Supports MO / MT
- Supports formats of PDU
- Point-to-point and cell broadcast

* Additional Features
- GNSS: GPS Standalone, A-GPS, LTO, Glonass
- SIM Hotswap
- IPV6
- BodySAR
- Tunable Antenna

* Interfaces
- Antenna interfaces x 2
- M.2 Socket
- Signal Control interface
- USB 2.0 interface high speed
- UICC interface
- Power supply

* OS: Windows 7/8/8.1/10/ Android 4.x or later

* Temperature range
- Normal operation: -10°C to +55°C
- Extended operation: -20°C to +70°C
- Storage temperature: -40°C to 85°C
- Humidity: 5% - 95%

SKU Huawei-ME906s-R
Barcode # 659657304155
Brand Huawei
Brand Huawei
Type WWAN Card
Model ME906s-158
