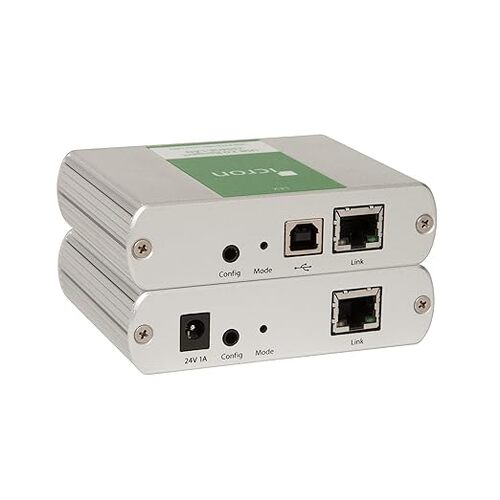

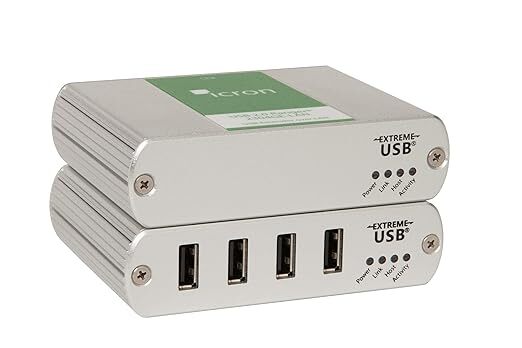

The USB 2.0 Ranger® 2304 is a four port USB 2.0 high speed extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m/330ft of CAT 5e/6/7 cabling. The Ranger 2304 is the latest USB 2.0  extender system from Icron, offering the same reliable USB 2.0 extension benefits as the Ranger 2204, but with faster throughputs when using read/write devices such as external hard drives as well as supporting a greater number of connections (up to 31 devices and hubs). The Ranger 2304 provides an integrated four port remote USB 2.0 powered hub delivering 600mA to each port supporting all USB 1.1, 2.0 and 3.0 device types (up to 480Mbps).

Features

  • Extends USB 3,0, 2.0, and 1.1 (both low-speed and full-speed) devices
  • Operates with USB 3.0, 2.0, and 1.1 hosts
  • Supports all USB devices up to 480Mbps
  • Uses a standard solid core Cat 5e cable for easy installation
  • Number of devices can be increased using additional USB hubs
  • FCC Class B
  • Rugged metal enclosure
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems: Windows®, macOS™, and Linux®

(Icron-USB-Ranger-2304)

Range

  • Direct connect range: up to 100m (330 ft) over CAT 5e/6/7 (or better) cable

USB Device Support

  • Traffic Types: All USB 2.0 and 1.1
  • Device Types: All USB 2.0 and 1.1 devices

LEX (Local Extender)

  • LEX unit USB connector: 1 x USB Type B
  • LEX unit Link connector: 1 x RJ45
  • Enclosure Material: Silver Anodized Aluminum
  • Dimensions: 100mm x 76mm x 26mm (3.9″ x 3.0″ x 1.0″)

REX (Remote Extender)

  • REX unit Link connector:  1 x RJ45
  • REX unit USB connector: 4 x USB Type A
  • Maximum USB devices supported: 31 devices and hubs
  • Power supply: 100-240V AC input, 1A 24V DC Output
  • Current available to USB at REX: 4 x 600mA
  • Enclosure Material: Silver Anodized Aluminum
  • Dimensions: 100mm x 76mm x 26mm (3.9″ x 3.0″ x 1.0″)

Environmental

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

  • FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1
SKU Icron-USB-Ranger-2304
Barcode # 613527420567
Brand Icron
Brand Icron
Type USB Extender
Model USB-EXT-DM-REMOTE
Shipping Cubic 0.017794000m3
