Product package includes ThinkPad USB-C Dock Gen 2, 90W Power Adapter, Power Cord, USB-C Cable.

Lenovo understands that modern business depends on a wide variety of PC’s and even brands to meet their business needs. To make this easier ThinkPad USB-C Dock Gen 2 (40AS) is compatible with Lenovo notebooks as well as notebooks from HP, Dell. **

**: DISCLAIMER: Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.

Features

  • Broad Compatibility: Lenovo Docking station is compatible with Lenovo and non-Lenovo notebooks to expand data, power, and video.
  • One connection, no limitations: Think of all the time you’d save if you could connect all your peripherals at once, transfer USB data at 10 Gbps speeds, have access to a stable, stress-free wired network connection.
  • Jaw-dropping 4K or multiple displays*: The days of being limited by your notebook’s capabilities are over. Now you can experience two vivid 4K screens or triple 1080p displays.
  • Ready for your command: Completely control your ThinkPad systems with PXE Boot, System Wake-on-LAN from sleep mode, hibernate mode, and power off mode. It also supports passing ThinkPad MAC address through the dock. Those features are supported on selected ThinkPad notebooks
  • Supported by the Lenovo Dock Manager, an advanced solution that automatically manages docking, as well as providing firmware updates, device queries, and analytics on all Lenovo Smart Docks.
  • Compatible with Lenovo Docking Station Mounting Kit (4XF0S99497)

Note: Dock has the ability to support DisplayPort™ 1.4 and HDMI™ 2.0 for max 2 x 4K @ 60 Hz displays, but the real video output would depend on the system’s output.

(LenovoUSBCDockGen2-R)

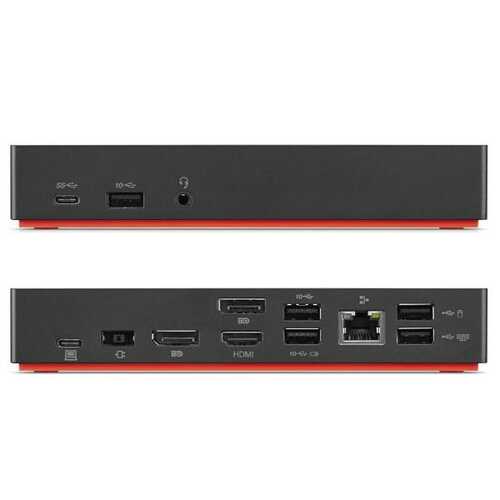

  • Docking Interface:
    • USB-C Cable
  • Video Ports:
    • Two DisplayPort
    • HDMI Port
  • USB Ports
    • Two USB 2.0
    • Three USB 3.1 Gen 2 (10 Gbps, 1 x always-on charging)
    • One USB-C (10 Gbps, 5V, 3A)
  • Audio Ports:
    • Stereo/Microphone Combo
  • Networking Port:
    • Gigabit Ethernet
  • Physical Security
    • Security lock slot
  • Maximum Number of External Monitors: 3
  • Maximum Resolution/ Refresh Rate: 3840x2160 @60Hz
  • Maximum Video Output:
    • One: 4K @ 60 Hz
    • Two: 4K @ 60 Hz. (Source:2 Lanes HBR3* Source, MST, DSC 3:1)
    • Three: 4K @ 60 Hz X 2, 4K @ 30 Hz X 1. (Source:2 Lanes HBR3* Source, MST, DSC 3:1)
  • Input Power: 90w
  • Maximum Power for Laptop Charging: 60W
SKU LenovoUSBCDockGen2-R
Barcode # 697937276020
Brand Lenovo
Brand Lenovo
Type Docking Station
Model ThinkPad USB-C Dock Gen 2
Shipping Cubic 0.017794000m3
