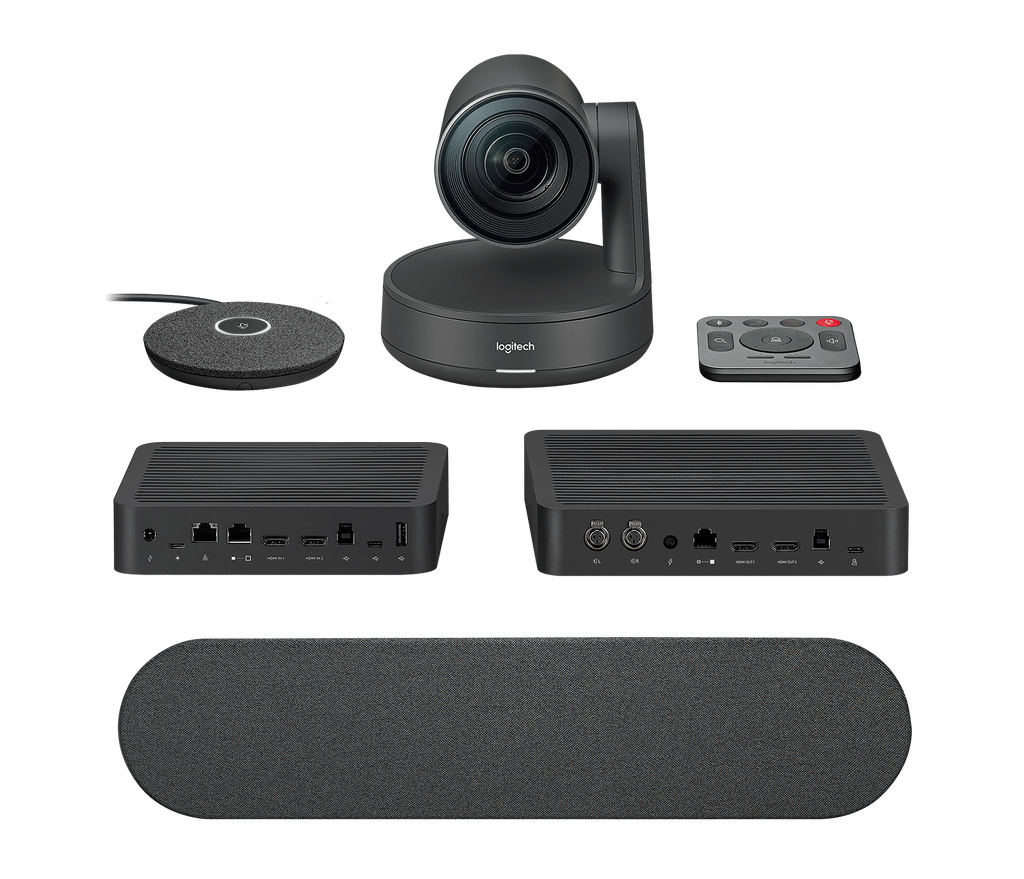

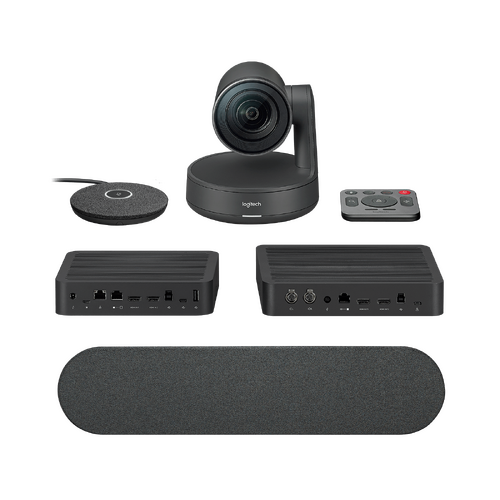

Rally Display Hub, Camera and Speaker in tested and working condition Multiple units available, varying levels of wear.

Includes Rally Display Hub, Table Hub, Camera, 1 Speaker, 5m Cat 6A cable, USB 3.0 Type-A to Type-B cable. Does NOT include Rally Mic pod, Remote, power supplies, USB Type-C to Type-C cable, HDMI cables.

MODULAR VIDEO CONFERENCING SYSTEM FOR LARGE AND EXTRA LARGE ROOMS

Ensure everyone is seen and heard in every video call with Logitech Rally Plus. Rally Plus sets the standard for USB-connected conference camera systems in large rooms, uniting premium design and materials with unmatched audio and video performance.



(LogiRally-Partial-R)

Dimensions

Rally Camera

  • Height: 182.5 mm
  • Width: 152 mm
  • Depth: 152 mm

Rally Speaker

  • Height: 103 mm
  • Width: 449 mm
  • Depth: 80 mm

Rally Display Hub

  • Height: 40 mm
  • Width: 206 mm
  • Depth: 179 mm

Rally Table Hub

  • Height: 40 mm
  • Width: 176 mm
  • Depth: 138 mm

Technical Specifications

RIGHTSENSE TECHNOLOGIES

  • RightLight with WDR
    • Low-light compensation
    • Video noise reduction
    • Low-light saturation optimization
    • Renders natural skin tones for each participant on camera
    • Reduces backlighting and glare without darkening the entire image.
  • RightSight
    • Human figure detection
    • Auto-frame participants at meeting start
    • Auto-frame participants on-demand
    • Auto-reframe participants during meetings
  • RightSound
    • Machine learning AI trained to distinguish human speech from other sounds
    • AEC (Acoustic Echo Cancellation)
    • VAD (Voice Activity Detector)
    • Background noise suppression
    • Auto-level loud and soft voices
  • RightSound Mic Matrix
    • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
    • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
    • Beam focus refresh rate: 8ms (125 times/second)
  • Anti-Vibration Suspension
    • A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
    • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

Rally Camera

  • Zoom: 15x HD zoom (5x optical + 3x digital)
  • Pan: 180° (±90°)
  • Tilt: 140° (+50° / -90°)
  • Field of View
    • Diagonal: 90°
    • Horizontal: 82°
    • Vertical: 52°
  • Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
  • Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
  • Resolutions @ 60fps: 1080p, 720p
  • RightLight Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
  • Privacy: Lens parks at -90° in sleep mode for assured privacy

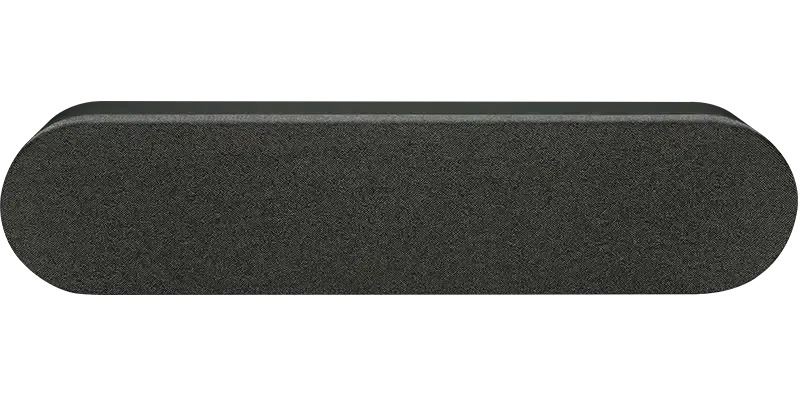

Rally Speaker

  • High-performance 76 mm driver with rare-earth magnet
  • Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
  • Mini XLR cable connects to Rally Display Hub for both signal and power
  • Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
  • Sensitivity: 95+/-2 dB SPL at ½ meter
  • Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
  • Sampling rate: 48 kHz

Rally Table Hub

  • Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m
  • Hub 5 m cable included, supports customer-supplied cables up to 50 m
  • Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
  • 12 Pin connector for Rally Mic Pod
  • HDMI Type A passthrough to Display Hub (x2)
  • USB Type C
  • USB Type A (reserved for future capability)
  • USB Type B (connects to meeting room computer)
  • RJ45 (reserved for future capability)
  • Power input

Rally Display Hub

  • HDMI Type A: (x2) (connects to displays)
  • USB C (connects to Rally Camera)
  • USB Type B (connects to meeting room computer)
  • RJ45: connects to Table Hub
  • Mini XLR: x2
  • Powers one or two Rally Speakers
  • Power input
SKU LogiRally-Partial-R
Barcode # 613527027926
Brand Logitech
Brand Logitech
Model Logitech Rally
Connectivity USB
Shipping Cubic 0.017794000m3
