An all-purpose 2D barcode reader that covers entry to mid-level scanning applications.

Ensuring straight forward productivity, the HR22 Dorada II is ideal for applications such as product traceability, purchase-sales-inventory management, ticket/voucher management and office automation.

Features

Supporting the step from 1D to 2D.
The HR22 Dorada II is specifically developed to provide a cost-effective scanning solution that allows customers to enjoy the capabilities of a 2D scanner for a price that the market had previously expected of 1D-only scanners.

Neat design.

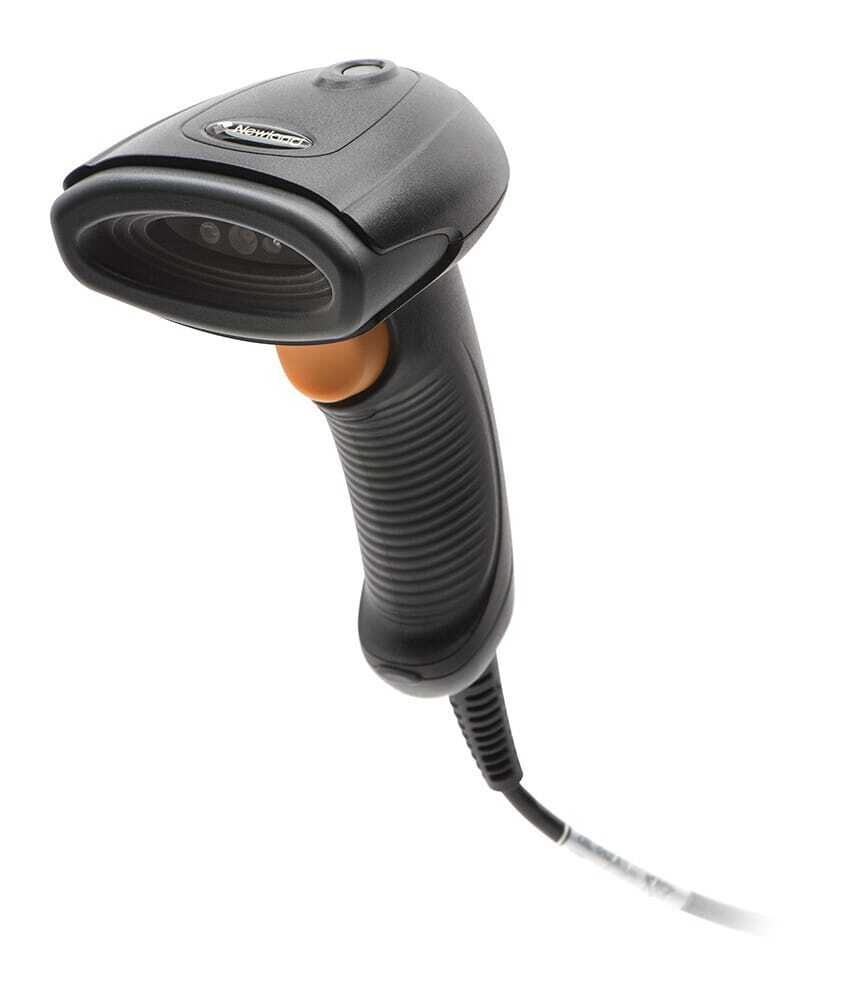

The handheld scanner has a clean design that is not out of place on a countertop. The adjustable stand, as well as saving space and keeping your workspace clutter-free, is attractive enough to sit alongside POS equipment in a customer facing environment.

Aiming at the right code.
The HR22 Dorada II now uses white illumination so the red LED aimers can be even more clearly seen. Ensuring the scanner is correctly lining up the code, it adds an extra level of confidence to the user.

Durable construction.
The HR22 Dorada II has a more than suitable IP42 rating for its key applications and is drop resistant up to 1.5m. Its durable housing guarantees optimal protection so falls from desktops and countertops are no issue.

CPU decoding for more codes and more control.
The Dorada II now uses Newland CPU processor decoding. The benefits of CPU-based decoding include improved configurations for data handling, as well as retaining additional flexibility to add more barcode symbologies. This includes Italian Pharma code found in pharmaceutical sales, as well as tracking and Aztec, common in airline boarding passes, ticketing and some retail loyalty.

Handsfree scanning.

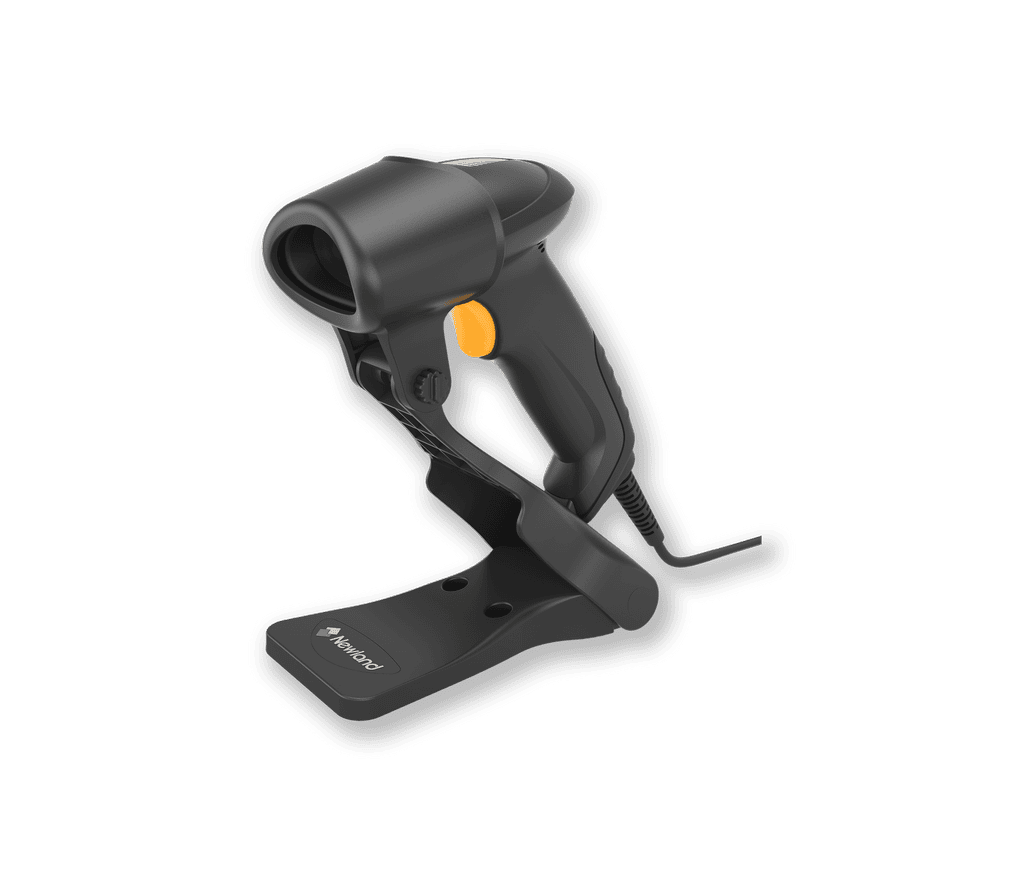

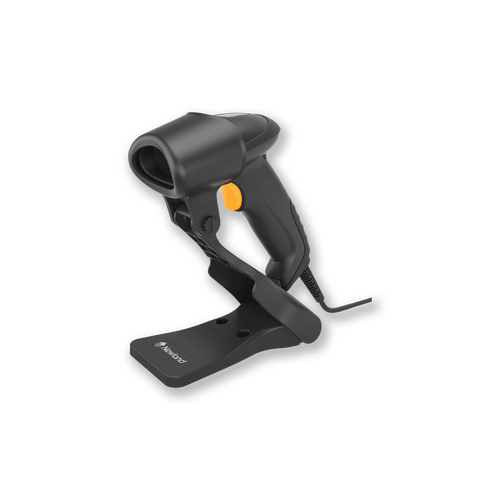

The handheld scanner is autosense ready, meaning it can switch from trigger press to handsfree by docking the scanner in the adjustable stand. Scanner available with stand as a kit.

(NewlandNLS-HR22-R)

Data Capture

1D All major 1D symbologies, including Code 11, Code 128, Code 39, GS1-128 (UCC/EAN 128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, ITF6, ITF-14, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS).
2D All major 2D symbologies, including PDF417, Micro PDF417, Micro QR, QR Code, Data Matrix, Aztec.
Image Sensor 640x480 CMOS
Illumination White LED
Aiming Red LED (625nm)
Depth of Field EAN 13 (13mil) 50-260mm
Depth of Field Code 39 (5mil) 50-115mm
Depth of Field PDF417 (6.67mil) 50-120mm
Depth of Field Data Matrix (10mil) 35-125mm
Depth of Field QR (15mil) 30-170mm

Performance

Minimal Print Contrast 20%
Scan Angle Roll 360° (QR 15mil)
Scan Angle Pitch ±55° (QR 15mil)
Scan Angle Skew ±55° (QR 15mil)
Field of View Horizontal 45°
Field of View Vertical 34°

Physical

Dimensions (mm) 145×101×68
Weight 111g
Interfaces RS-232, USB
Notifications Beep, LED indicator
Input Voltage 5VDC±5%
Current @ 5VDC Operating 190mA (typical), 201mA (max.)
Current @ 5VDC Standby 35mA
Power Consumption 950mW (typical)

Environmental

Operating Temperature -20℃ to 60℃ (-4°F to 140°F)
Storage Temperature -40℃ to 70℃ (-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
Electro Static Discharge (ESD) ±15 kV (air discharge), ±8 kV (direct discharge)
Drop 1.2m
IP Rating IP42

Software

Configuration Tools EasySet

Certifications

Hardware FCC Part15 Class B, CE EMC Class B, RoHS
SKU NewlandNLS-HR22-R
Barcode # 676821336286
Brand Newland
Brand Newland
Model NLS-HR22
Shipping Cubic 0.017794000m3
