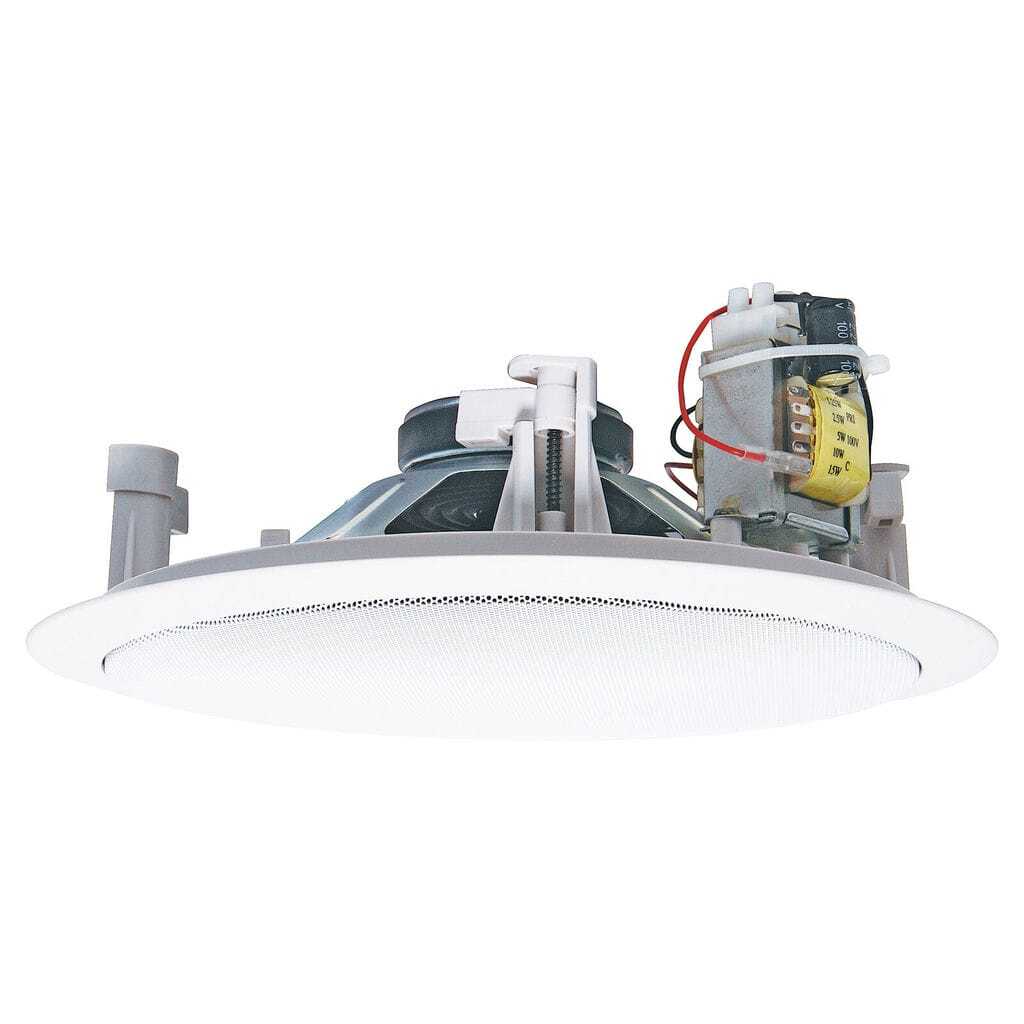

The C 2126B is a high power 15W dual cone PA speaker designed for BGM & paging applications. The offset transformer mounting allows mounting in ceilings with limited recess space.  It is fitted with line monitoring capacitor and 4 way wire protect terminal connection.

 Key Features:

  • Excellent speech intelligibility
  • High quality speaker driver developed for BGM & paging applications
  • Flip-lock mounting system reduces installation time.
  • Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
  • Fitted with supervisory capacitor for line monitoring.
  • Stylish ABS surround and aluminium mesh grille.

About the Fast-Fix Flip Lock System.

Redback® “Fast-Fix” speaker utilise a time saving flip lock mounting method. It results in a finish with no visible screw heads or caps. The flip lock tabs slide outwards as the speaker is screwed into the hole, securing the speaker to the ceiling material from the top side. Suitable for use with any 8-33mm ceiling tile, including gyprock, mineral fibre or fixed gyprock ceilings. We recommend using our T 2314 hole saw to cut the speaker hole.

(RedbackC2126B-R)

Electrical
Power taps: 1.25, 2, 5, 10, 15W
SPL 1W @ 1m: 91dB @ 1kHz (+/- 2dB)
Frequency response: 55Hz-15kHz
Connection: 4 way terminal block + 22uf bipolar capacitor

Mechanical
Grille material: ABS surround, aluminium mesh grille
Driver construction: Paper twin cone
Ceiling cutout: 238Ømm
Grille diametre: 273Ømm
Mounting depth: 88mm (including ceiling tile thickness)
Overall weight: 1.24kg
Colour: White

Environmental
Operating temperature: -25°C to +55°C
Relative humidity: < 95%

SKU RedbackC2126B-R
Barcode # 608539241279
Brand Redback
Brand Redback
Type Ceiling Speaker
Model C 2126B
Connectivity Wired
Shipping Cubic 0.017794000m3
