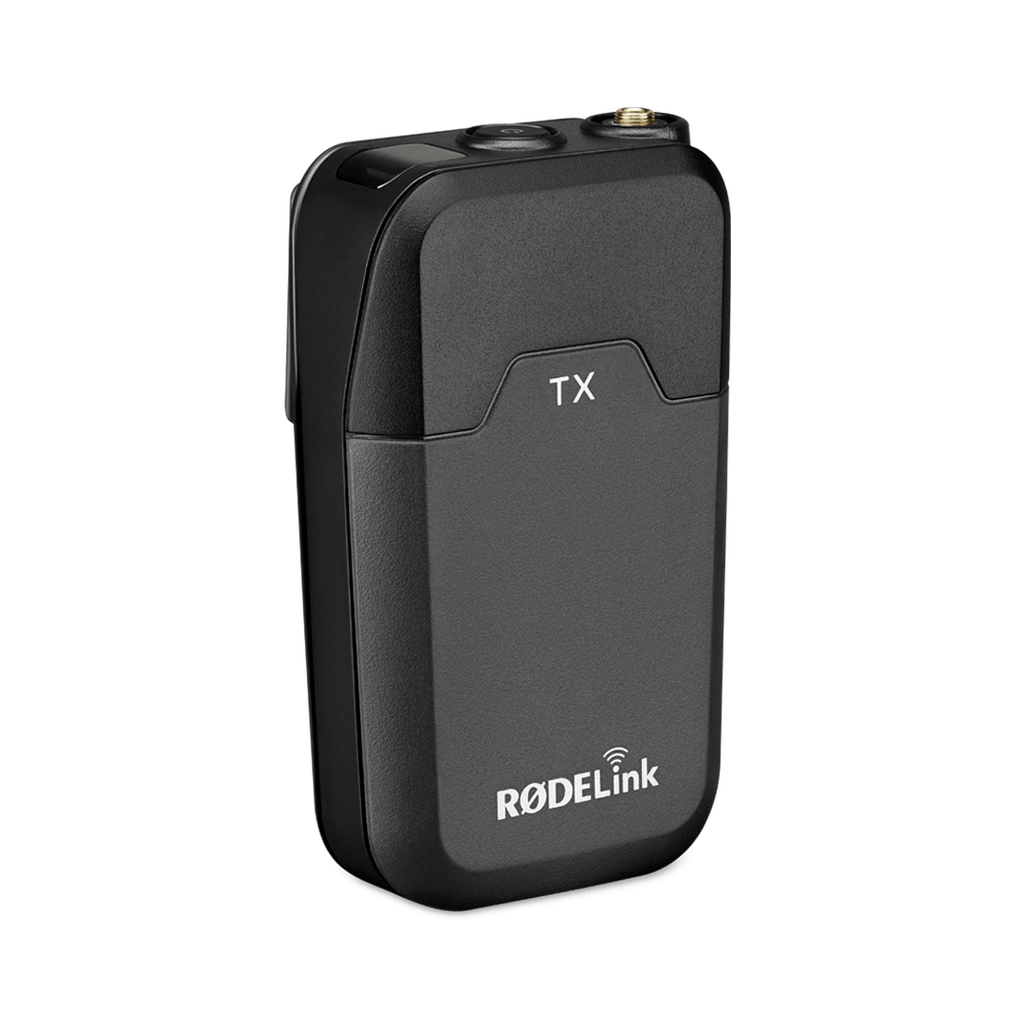

The Rode TX-BELT is a beltpack wireless transmitter designed to provide easy and secure transmission of wireless audio for videographers, filmmakers, and electronic news gatherers. It works with RODELink digital wireless systems and can be powered via two AA batteries or a micro-USB connection.

An internal antenna contributes to the compactness of the TX-BELT. It can be attached to a belt, strap, or clothing via the belt clip. The bottom panel slides down for access to the gain switch, which has positions for 0 dB, +10 dB, and +20 dB. Current channel selection is indicated on a large display by the dedicated power button. The 3.5mm TRS input features a locking jack socket to prevent accidental disconnection. The TX-BELT ships with a lavalier microphone and a captive TRS cable.

  • Designed for use with RODELink digital wireless systems
  • Belt clip allows quick attachment to a belt or clothing
  • Selectable 0 dB, +10 dB, or +20 dB gain via switch beneath the slide-down bottom panel
  • Large indicator for channel selection
  • Input connection utilizes a 3.5mm TRS locking jack socket
  • Powered via two AA batteries or micro-USB connection
  • Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive audio from one transmitter at a time.

(RodeTX-BELT-R)

Max Operating Range

328.1' / 100 m

Max Transmitters per Band

1

Built-In Recorder

No

Encryption

128-Bit

Transmitter

Transmitter Type

Bodypack

RF Output Power

Not Specified by Manufacturer

Audio I/O

1x 1/8" / 3.5 mm TRS Female Unbalanced Input (Locking)

Included Cable Connector

No

Auto-Level Control

No

Antenna

1x Internal

Power Requirements

Battery, Bus Power (USB)

Battery Type

2x AA

USB/Lightning I/O

1x Micro-USB (Bus Power)

Display & Indicators

1x LED (Battery Status, Channel, Power)

Dimensions

4.4 x 2.6 x 1.6" / 111 x 65 x 40 mm

Weight

6.7 oz / 190 g

Microphone

Microphone Type

Lavalier

Color

Black

Sound Field

Mono

Capsule

Electret Condenser

Diaphragm

0.10" / 2.54 mm

Equivalent Noise Level

25 dB A-Weighted

Maximum SPL

110 dB SPL

Impedance

3000 Ohms

Output Connector

1x 1/8" / 3.5 mm TRS Male (Locking)

Cable Length

3.9' / 1.2 m

Length

0.5" / 12 mm

Diameter

0.2" / 4.5 mm

Weight

0 oz / 1 g

Packaging Info

Package Weight

0.6 lb

Box Dimensions (LxWxH)

6.95 x 5 x 2.6"

SKU RodeTX-BELT-R
Barcode # 698813004348
Brand Rode
Brand Rode
Type Wireless Transmitter
Model TX-BELT
Shipping Cubic 0.017794000m3
