Includes SRD-842 DIgital Video Recorder, remote, compatible 12V power adapter, power cable. Some superficial damage, 1 foot missing.

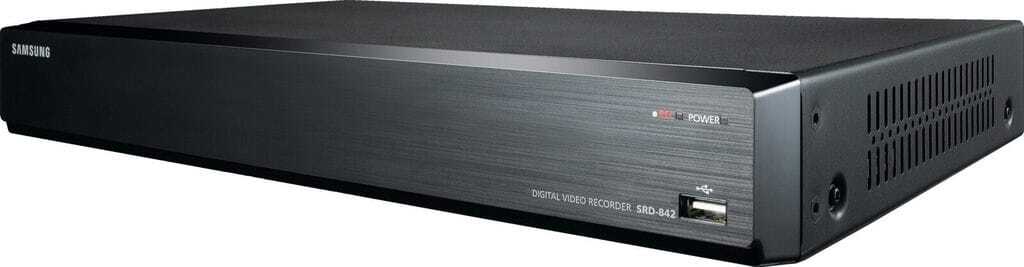

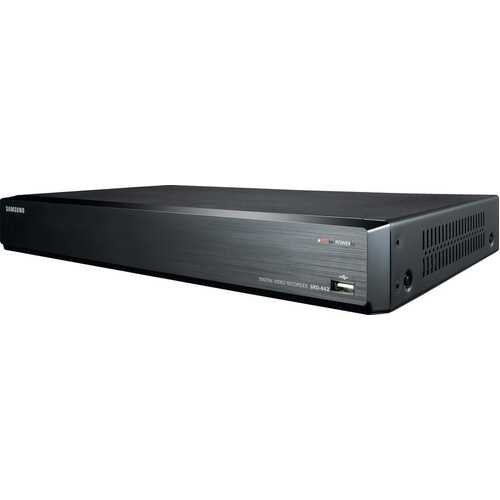

Samsung's new SRD-842 is a 8CH 960H Real-time Compact Design Coaxial DVR, with an easy user interface, common across all Samsung DVRs. Featuring the ability to set independently for each channel the REC, Quality, and Resolution. Samsung's new SRD-842 allows for convenient network monitoring through various application such as Web viewer, SSM, SmartViewer, iPOLiS smart phone app.

Key Features

  • 8CH 4CIF real-time DVR
  • Up to 240(NTSC) / 200(PAL)fps recording rate
  • HDMI / VGA video output
  • Max. 2 internal HDDs
  • PTZ control via coaxial cable (Samsung CCVC, Pelco-C)
  • Smart phone support (Android / iOS)
  • Compact product footprint

(SRD-842-R)

Display

Video Inputs

8 composite video 0.5 to 1 Vpp, 75 Ω

Video Resolution

NTSC: 960 x 480, 720 x 480
PAL: 960 x 576, 720 x 576

Frame Rate

NTSC: 240 fps
PAL: 200 fps

Live Resolution

NTSC: 720 x 480
PAL: 720 x 576

Multi-Screen Display

1 / 4 / 6 / 8 / Sequence / PIP

Performance

Operating System

Embedded Linux

Compression

H.264

Recording Rate

NTSC: Up to 240 fps @ 960 x 480
PAL: Up to 200 fps @ 960 x 576
NTSC: Up to 240 fps @ 704 x 480
PAL: Up to 200 fps @ 704 x 576
NTSC: Up to 240 fps @ 704 x 240
PAL: Up to 200 fps @ 704 x 288
NTSC: Up to 240 fps @ 352 x 240
PAL: Up to 200 fps @ 352 x 288

Recording Mode

NTSC: Manual, Schedule (Continuous / Event), Event (Pre / Post)
PAL: Manual, Schedule (Continuous / Event), Event (Pre / Post)

Event

Video loss, Motion (Level 1 to 10), Alarm

Overwrite Modes

Continuous, Selectable (Stop / Continuous)

Pre-Alarm

Up to 5 sec

Post-Alarm

Up to 6 hour (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 minutes, 1, 2, 3, 4, 5, 6 hour)

Search Modes

Date/Time, Event (Alarm / Motion), Back up, POS (*All search include preview function)

Playback Function

Fast forward/backward (x2, x4, x8, x16, x32, x64)
Slow forward/backward (x1/2, x1/4, x1/8)
Step forward/backward (x2, x4, x8, x16, x32, x64)

Transmission Speed

CIF (NTSC: 480 fps, PAL: 400 fps)

Bandwidth

Up to 16 Mb/s, Unlimited / 2 / 1.5 / 1 Mb/s / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kb/s

Bandwidth Control

Automatic

Stream Type

H.264 (CIF)

User Access

4 persons (Search up to 2, Live unicast / Live multicast available)

Protocol Support

Network: TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Smartphone: RTP, RTSP, HTTP, CG

Monitoring

Net-I Viewer, SmartViewer, Web Viewer

Platform

Android and iOS

Users

Remotely: Live 1

Internal HDD

Up to 2 SATA HDDs (1 TB)

USB (Back up)

2 USB ports

Backup File Format

BU (DVR player), EXE (including player), AVI

Password Protection

1 Admin, 10 Group, and 10 users per 1 Group

Data Authentication

Watermark

Interface

VGA

1280 x 720, 1280 x 1024, 1920 x 1080

HDMI

1280 x 720, 1280 x 1024, 1920 x 1080

Spot Composite

Digital spot (1-channel)

Input & Output

4-channel line in (Built-in 4-channel
Option : Audio extension cable) / 1-channel line out

Audio Compression Format

G.711

Audio Sampling Frequency

8 kHz

Alarm

Terminal 8 inputs (NO/NC) / Terminal 2 relay outputs (NO)
Rating: 30 VDC / 2 A, 250 VA/ 0.25 A

Notification

Remotely via email

Ethernet

1 RJ-45 10/100 Base-T

Serial Interface

RS-485 (Half) for PTZ, System keyboard, RS-232 support for POS interface (VSI-pro)

USB

USB 2.0, 2 ports (front)

Application Support

Mouse and remote controller

Protocol Support

Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE PTZ control via coaxial cable [Samsung CCVC, Pelco-C (Coaxitron)]

General

Language

Korean, Japanese, Chinese (Simplified / Traditional), English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Romanian, Serbian, Croatian, Hungarian, Greek, Chinese, Finnish, and Norwegian (25 Languages)

Rack Mount Kit

2 each

Electrical

Input Voltage / Current: 12 VDC adapter, 4 A, 100 to 250 VAC ±10%; 50/60 Hz
Power Consumption: Maximum 19 W (with 1 x HDD)

Operating Temperature

32 to 104°F (0 to 40°C)

Humidity

20 to 85% RH

Dimensions

14.8 x 2.0 x 10.0" (34.5 x 5.2 x 25.5 cm)

Weight

Approximately 5.1 lb (2.3 kg)



SKU SRD-842-R
Barcode # 659359823046
Brand Samsung
Brand Samsung
Type Digital Video Recorders
Model SRD-842
Connectivity HDMI, VGA, Composite (BNC)
Unit Of Measure ea
