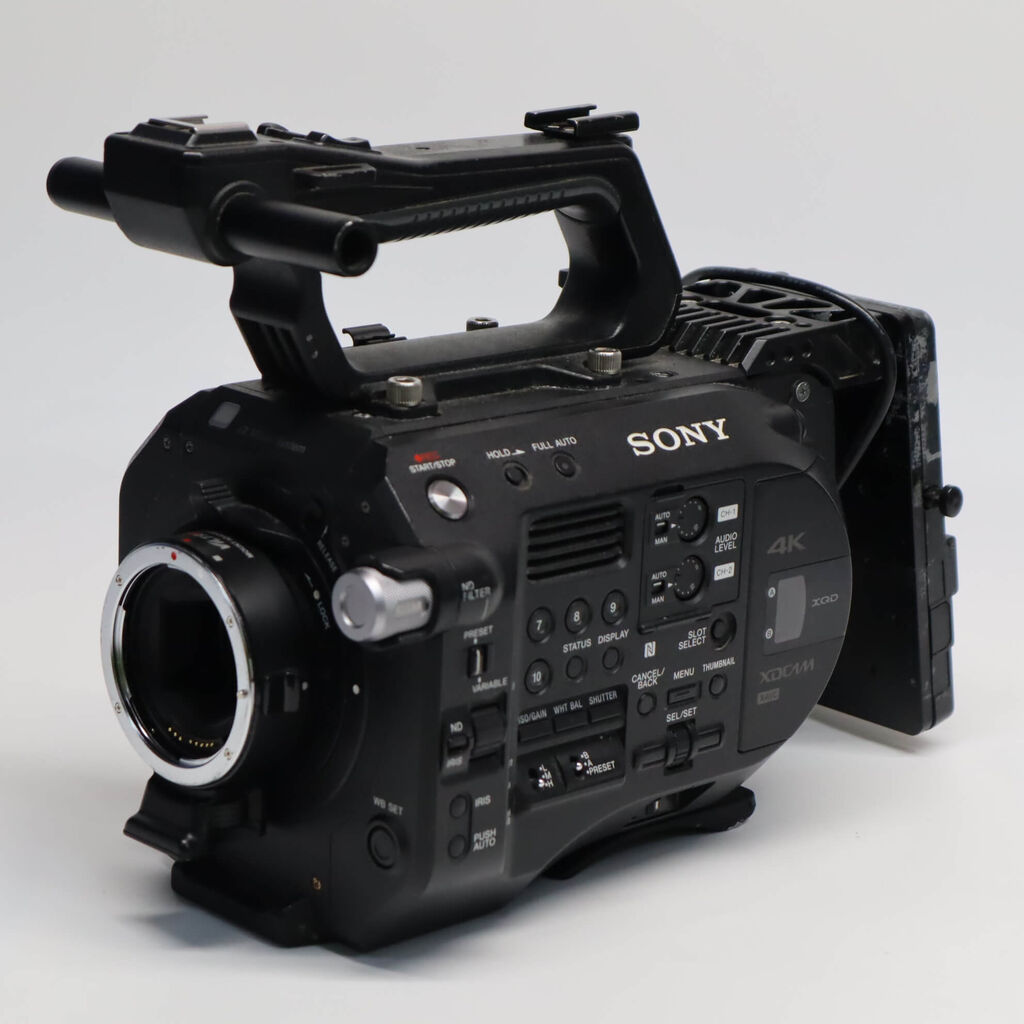

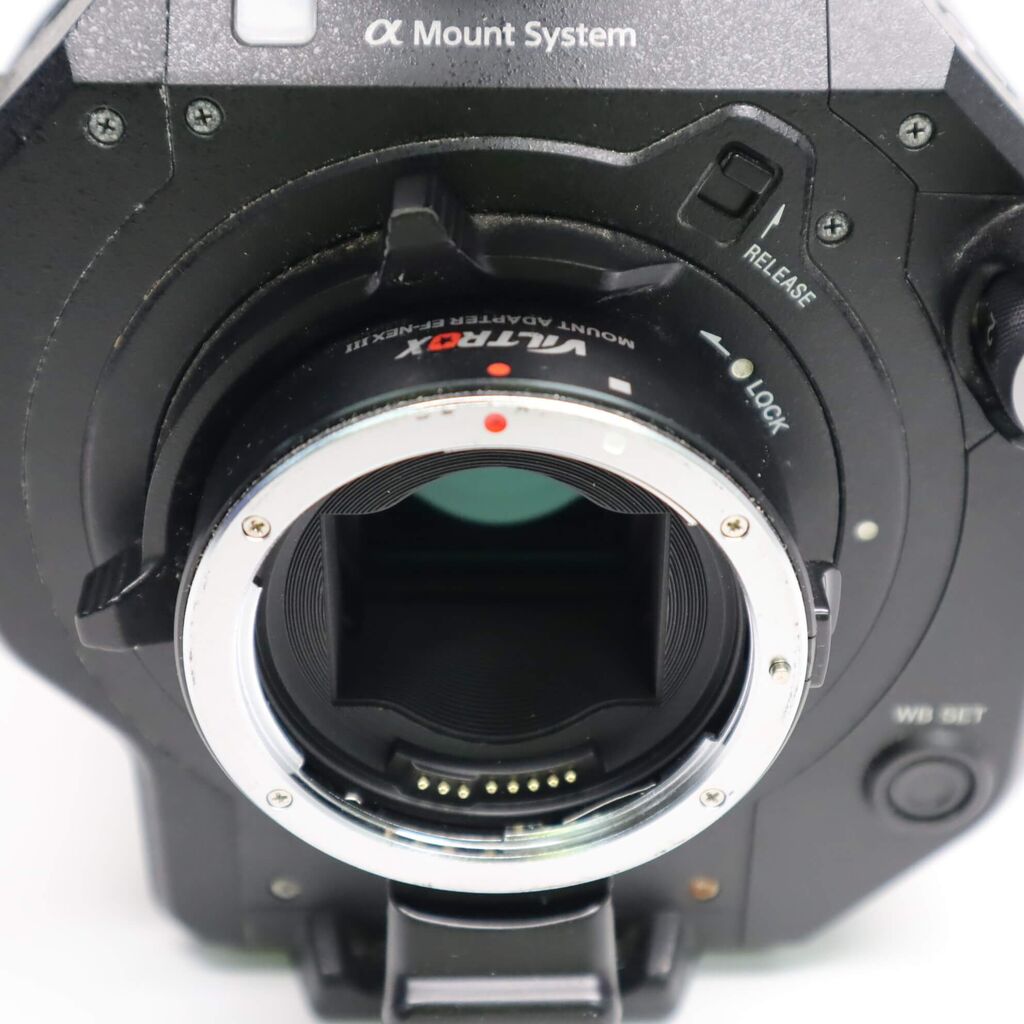

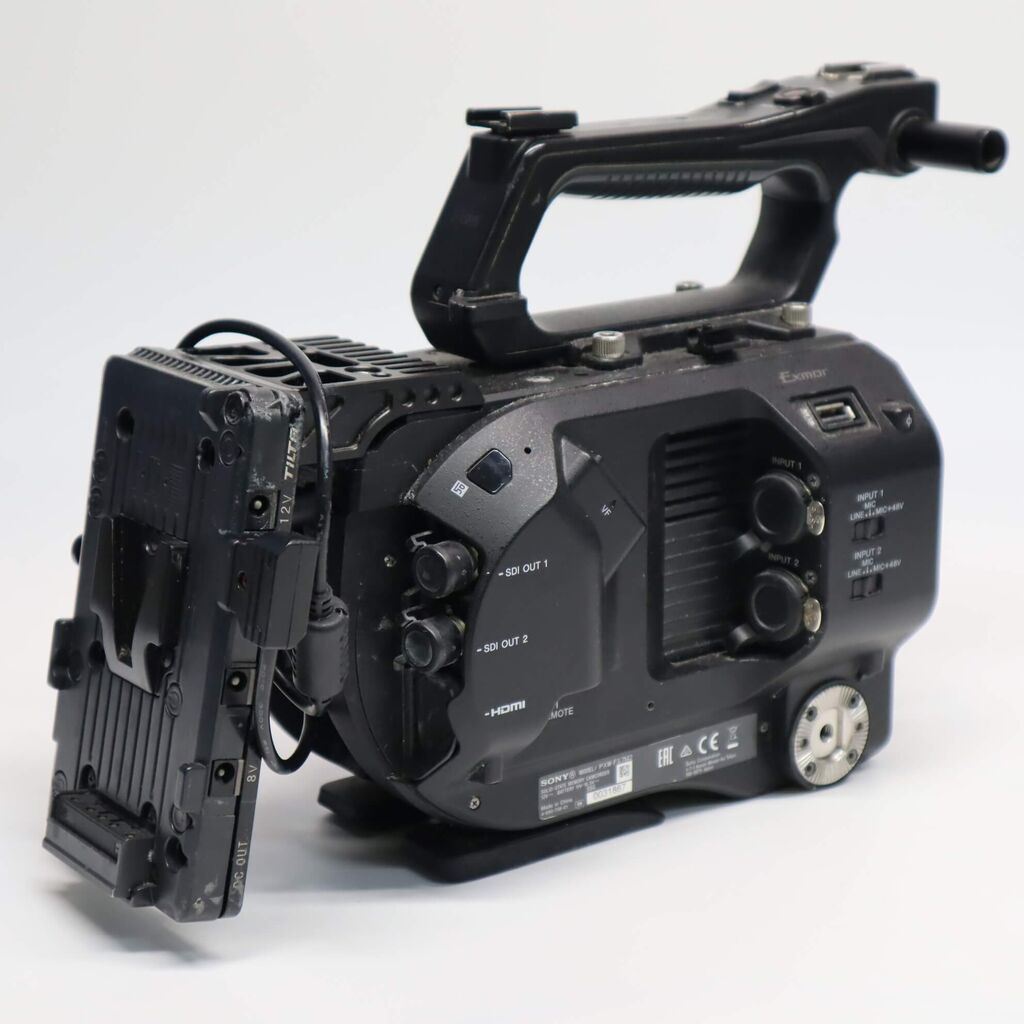

Tested to power on with DC 12V power supply, display output over HDMI. Includes PXW-FS7M2 Camera with Viltrox EF-NEX III Mount Adapter for Canon EF lenses, compatible Sony 12V power adapter, Tilta Battery Plate (no battery/power adapter). Does NOT include battery, viewfinder display, microphone mount, XQD card.

FS7 II dramatically improves the experience of shooting with Sony’s ultimate documentary camcorder and simply one of the world’s most versatile Super 35mm camcorders. A host of enhancements, from world-leading Electronic Variable ND system to lever lock type E-mount and enhanced ergonomics, transform the possibilities of what you can do.
Shoot and move. Handheld, shoulder-mount or suspended from a gimbal. FS7 II delivers the spectacular imagery you expect from Sony.

(PXW-FS7M2-NoBatt-BGrade)

Mass

Approx. 2.0 kg (body only)
Approx. 4.5 kg (with Viewfinder, Eyepiece, Grip Remote Control, BP-U35 battery, SELP18110G LENS without tripod mount, an XQD memory card)
Dimensions (W x H x D)

158.9 x 245.2 x 247mm (body without protrusions)

Power Requirements Power Requirements DC 12.0V (AC adaptor)
Please use genuine Sony batteries to ensure correct and safe operation
Power Consumption

Approx. 19W (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)

Operating temperature

0°C to 40°C
32°F to 104°F

Storage temperature

-20°C to +60°C
-4°F to +140°F
Battery Operating Time Approx. 1 hours, 15 minutes with BP-U35 battery (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
Approx. 1 hrs. with BP-U30 battery
(while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
Approx. 2 hours with BP-U60 battery while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
Approx. 3 hours with BP-U90 battery (while recording XAVC-I QFHD 59.94P, SELP18110G Lens, Viewfinder ON, not using external device)
Recording Format (Video)

XAVC-I mode:DCI4K 59.94P CBG, bit rate 600Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 50P CBG, bit rate 500Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 29.97P CBG, bit rate 300Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 23.98P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 24.00P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC
XAVC-I mode:DCI4K 25P CBG, bit rate 250Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 59.94P CBG, bit rate 600Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 50P CBG, bit rate 500Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 29.97P CBG, bit rate 300Mbps, MPEG-4 H.264/AVC
XAVC-I mode:QFHD 23.98P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC

XAVC-I mode:QFHD 25P CBG, bit rate 250Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 59.94P VBR, maximum bit rate 222Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 50P VBR, maximum bit rate 185Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 59.94i VBR, maximum bit rate 111Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 50i VBR, maximum bit rate 112Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 29.97P VBR, maximum bit rate 111Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 23.98P VBR, maximum bit rate 89Mbps, MPEG-4 H.264/AVC
XAVC-I mode:HD 25P VBR, maximum bit rate 112Mbps, MPEG-4 H.264/AVC
XAVC-L QFHD 59.94P/50P mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC

XAVC-L QFHD 29.97P/23.98P/25P mode: VBR, maximum bit rate 100Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode: VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
XAVC-L HD 35 mode:VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

MPEG HD422 mode:CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL

Recording Format (Audio)

LPCM 24 bits, 48 kHz, 4 channels

Recording frame rate

XAVC-I DCI4K mode: 4096x2160/ 59.94P, 50P, 29.97P, 23.98P, 24P, 25P
XAVC-I QFHD mode: 3840x2160/ 59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-I HD mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L QFHD mode: 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L 35 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L 25 mode: 1920x1080/59.94i, 50i
MPEG HD422 mode: 1920x1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280x720/59.94P, 50P, 29.97P, 23.98P, 25P

Recording/Playback time

XAVC-I mode QFHD 59.94P When using QD-G128A(128GB): Approx. 22 minutes
XAVC-I mode QFHD 50P When using QD-G128A(128GB): Approx. 26 minutes
XAVC-I mode QFHD 29.97P When using QD-G128A(128GB): Approx. 44 minutes
XAVC-I mode QFHD 23.98P When using QD-G128A(128GB): Approx. 55 minutes
XAVC-I mode QFHD 25P When using QD-G128A(128GB): Approx. 52 minutes

XAVC-I mode HD 23.98P When using QD-G128A(128GB): Approx. 147 minutes
XAVC-I mode HD 25P When using QD-G128A(128GB): Approx. 141 minutes
XAVC-L mode QFHD 59.94P/50P When using QD-G128A(128GB): Approx. 87 minutes
XAVC-L mode QFHD 29.97P/23.98P/25P mode: When using QD-G128A(128GB): Approx. 131 minutes
XAVC-L 50 mode When using QD-G128A(128GB): Approx. 262 minutes

XAVC-L 35 mode When using QD-G128A(128GB): Approx. 374 minutes
XAVC-L 25 mode When using QD-G128A(128GB): Approx. 524 minutes
MPEG HD422 mode When using QD-G128A(128GB): Approx. 262 minutes

Lens

Lens mount

E-mount (lever lock type)

Camera

Imaging Device (Type) Super35 type Single-chip Exmor CMOS
Effective Picture Elements

17:9 4096 (H) x 2160 (V)
16:9 3840 (H) x 2160 (V)

Built-in Optical Filters

ND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Linear variable ND (1/4ND to 1/128ND)

Sensitivity (2000 lx, 89.9% reflectance)

Video Gamma: T14 (3840 x 2160/23.98P mode 3200K)

ISO Sensitivity ISO 2000(S-Log3 Gamma D55 Light source)
Minimum Illumination 0.7 lx (+18dB,23.98P,Shutter OFF,ND Clear, F1.4)
S/N Ratio

57 dB (Y) (typical)

Shutter Speed

1/3 sec to 1/9,000 sec

Slow & Quick Motion Function

XAVC-I mode 3840x2160: 1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
XAVC-I mode 1920x1080:1 to 180 frames (59.94P, 29.97P, 23.98P) 1 to 150 frames (50P,25P)
XAVC-L mode 3840x2160:1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
XAVC-L mode 1920x1080: 1 to 120 frames (59.94P, 50P, 29.97P, 23.98P, 25P)

White Balance

Preset, Memory A, Memory B(1500K-50000K)/ATW

Gain

-3, 0, 3, 6, 9, 12, 18 dB, AGC

Gamma Curve STD,HG,User,S-Log2, S-Log3

Input/Output

Audio input

XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -40, -50, -60dBu

SDI Output

BNC(x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M

USB

USB device, mini-B (x1)

Headphone Output

Stereo mini jack (x1) -16dBu 16Ω

Speaker Output Monaural
DC Input DC jack
Remote

Stereo mini-mini jack (Φ2.5 mm)

HDMI Output

Type A (x1)

Option

4-pin, Type A for W-LAN (x1)

Built-in microphone

Capsule type

Omni-directional stereo electret condenser microphone

Monitoring

Built-in LCD Monitor

8.8cm (3.5 type) Approx. 1.56M dots



Built-in Microphone

Built-in Microphone Omni-directional monaural electret condenser microphone

Media

Type

XQD Card slot(x2)
SD Card slot(x1) for saving configuration data



SKU PXW-FS7M2-NoBatt-BGrade
Barcode # 634855436167
Brand Sony
Brand Sony
Type Professional
Model PXW-FS7M2
Shipping Cubic 0.017794000m3
